SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door, Lit/optional


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Icemaker


11 - Air Flow


12 - Control

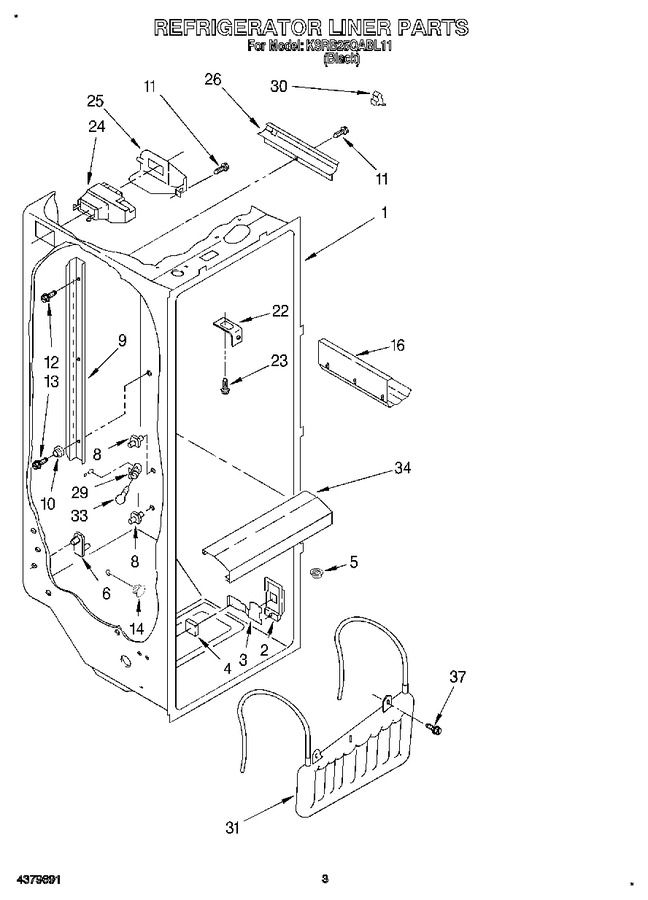

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	985468		Escutcheon, Meat Pan Control		Appelez-nous	-
3	984102		Slide, Meat Pan Control				$ 5.02
4	992358		Pad, Foam		Appelez-nous	-
5	2171846		Release Valve				$ 18.99
6	1125675		Stud, Pan Cover		Appelez-nous	-
8	4388538		Stud (9)   (Replaces: 1110718)			Immediately	$ 32.85
9	1116794		Ladder, Shelf (2)		Appelez-nous	-
10	658944		Stud, Shelf (2)		Appelez-nous	-
11	W10759522		Screw (2)   (Replaces: 486298)				$ 8.24
12	WP488729		Screw   (Replaces: 487539)			Immediately	$ 8.28
13	487559		Screw (2)		Appelez-nous	-
14	WP941839		Plug, Hole   (Replaces: 941839)				$ 8.03
16	1126137		Rack, Wine & Egg		Appelez-nous	-
22	WP2256085		Bracket, Retainer   (Replaces: 1123919)				$ 36.10
23	WP488488		Screw (2)   (Replaces: 489290)				$ 8.52
24	WPW10151374		Air Diffuser Assembly   (Replaces: 2161251)			Immediately	$ 104.77
25	2152019		Cover, Air Diffuser				$ 90.33
26	2150331		Cover, Conduit				$ 25.62
29	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 115.67
30	2215823		Clip, Air Duct   (Replaces: 842534)				$ 10.94
31	WP2256126		Reservoir   (Replaces: 2155290)				$ 177.29
33	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
34	1125586		Light Lens		Appelez-nous	-
37	488280		Screw (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
