Diagram # Part Number Description Series Availability Ships Price Add to Cart
4 N/A Housing, Dispenser (not A Serviceable Part) Appelez-nous -
5 W11693756 Screw   (Replaces: 488687) In-Stock Immediately $ 14.76

6 N/A Tube, Water (see Item No.22) Appelez-nous -
7 2152716 Frame, Slides Appelez-nous -
8 2152719 Slide, Cube/crush Switch Appelez-nous -
9 WP2180353 Door, Ice   (Replaces: 2157651) In-Stock Immediately $ 26.83

10 2157650 Door Mechanism Assembly Appelez-nous -
12 WP1120581 Mechanism Delay   (Replaces: 1120581) Special Order $ 223.72

13 983900 Grille, Overflow Special Order $ 27.30

14 987917 Clip, Bearing (2) Appelez-nous -
15 983697 Bearing, Lever (3) Appelez-nous -
16 983696 Spring, Lever (2) Special Order $ 21.26

17 2147165 Shield, Wiring Appelez-nous -
18 WP489128 Screw   (Replaces: 488500) Special Order $ 11.40

19 625834 Spacer Special Order $ 7.99

22 WP4388152 Water Fitting Assembly (includes Water Tube)   (Replaces: 2155018) Special Order $ 290.25

23 WP965173 Screw   (Replaces: 487916) In-Stock Immediately $ 11.87

24 1127421 Lever Assembly, Ice Dispenser Appelez-nous -
25 1119035 Guide, Ice Appelez-nous -
26 488892 Screw Appelez-nous -
27 2152724 Slide, Light Switch Appelez-nous -
29 2147131 Lamp Holder Appelez-nous -
30 WP2162361 Switch   (Replaces: 2162361) In-Stock Immediately $ 28.71

32 2147164 Insulator, Control Bracket Appelez-nous -
33 2147163 Bracket, Control Appelez-nous -
34 WP22002263 Bulb, Light   (Replaces: 851389) In-Stock Immediately $ 14.85

35 488361 Screw (2) Appelez-nous -
36 489155 Screw, Appelez-nous -
38 2159196 Lever Assembly, Water Dispenser Appelez-nous -
39 1125803 Insert, Cover Appelez-nous -
40 1125807 Cover, Housing (includes Item 39) Appelez-nous -
41 2147172 Heat Shield, Frame Appelez-nous -
42 987049 Bracket, Water Appelez-nous -
45 WP3400906 Screw   (Replaces: 489000) Special Order $ 9.05


    View Diagram in Separate Window     Print Icon   Print Part List

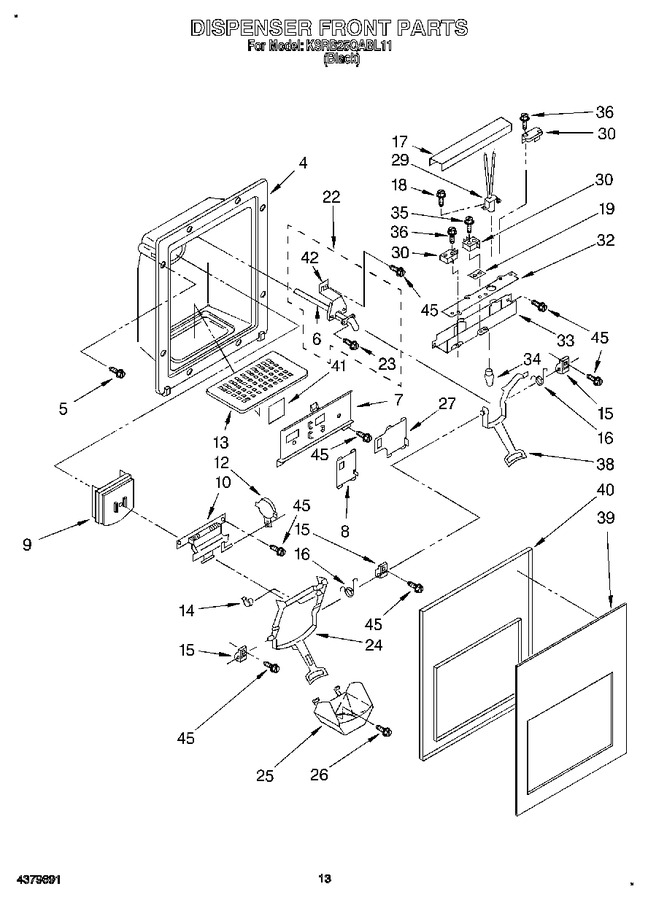

Diagram for KSRB25QABL11
