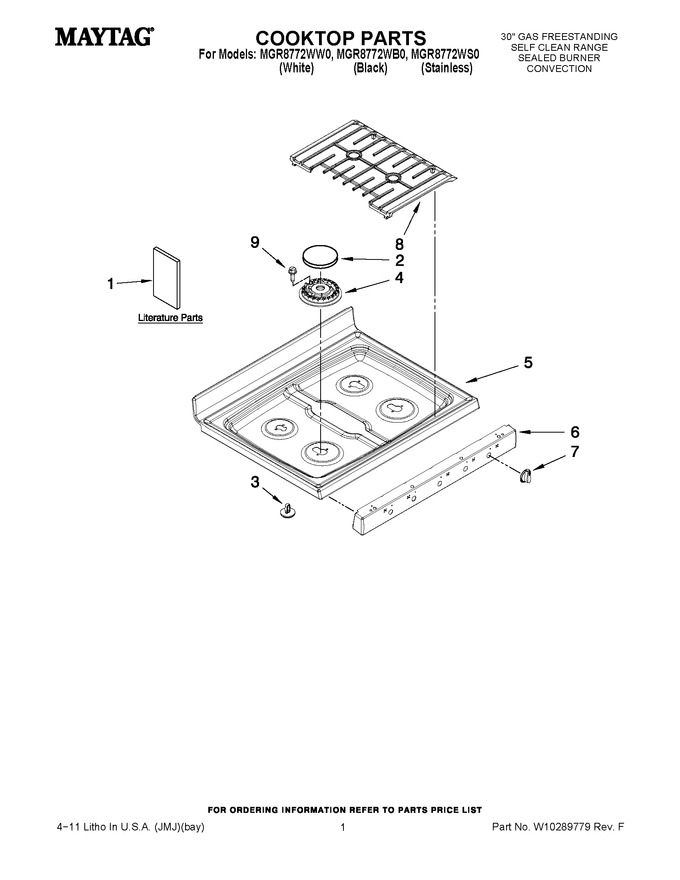

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts


06 - Drawer And Rack Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10258096		Installation Instructions		Appelez-nous	-
1	W10239474		Wiring Diagram		Appelez-nous	-
1	9762761		Tips, Safe Cooking		Appelez-nous	-
1	W10239464		Owners Manual		Appelez-nous	-
2	WPW10183369		Cap, Burner (rr & Lr) (black)   (Replaces: W10183369)				$ 68.37
2	WPW10183370		Cap, Burner (center) (black)   (Replaces: W10183370)				$ 67.99
2	WPW10169975		Cap, Burner (center) (gray)   (Replaces: W10169975)				$ 70.50
2	W10169973		Cap, Burner Rf & Lf (gray)				$ 102.63
2	W10169974		Cap, Burner (rr & Lr) (gray)				$ 29.04
2	WPW10183368		Cap, Burner Rf & Lf (black)   (Replaces: W10183368)				$ 89.47
3	74008761		Spacer, Snap-in   (Replaces: 8010P149-60)				$ 8.81
4	WPW10406243		Burner (lr)   (Replaces: 8286181)			Immediately	$ 39.08
4	WPW10406878		Burner (rf & Lf)   (Replaces: 8286183)				$ 107.48
4	WPW10406283		Burner (rr & Ctr)   (Replaces: W10194076)				$ 78.02
5	W10237151		Cooktop (black)		Appelez-nous	-
5	W10237150		Cooktop (white)		Appelez-nous	-
6	W10211381		Panel, Manifold (black)				$ 137.14
6	W10211380		Panel, Manifold (white)				$ 66.27
6	W10211395		Panel, Manifold (stainless)		Appelez-nous	-
7	WPW10200193		Knob, Control (5) (black)   (Replaces: W10200193)				$ 24.18
7	WPW10111302		Knob, Control (5) (stainless)   (Replaces: W10111302)				$ 110.31
7	WPW10200192		Knob, Control (5) (white)   (Replaces: W10200192)			Immediately	$ 83.92
8	W10249312		Grate, Burner (2) (gray)				$ 115.29
8	W10249311		Grate, Burner (2) (black)				$ 123.78
9	WP3368921		Screw (8)   (Replaces: 3400701)			Immediately	$ 8.56
