Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11520287 Rack, Oven (2)   (Replaces: W10179196) In-Stock Immediately $ 46.84

3 W11233072 Screw   (Replaces: 74009268) In-Stock Immediately $ 14.72

4 WP3405F037-80 Drawer   (Replaces: 3405F037-80) Special Order $ 355.81

5 7701P547-60 Handle, Ss Model Special Order $ 89.46

6 W11244557 Screw   (Replaces: 3196173) Special Order $ 14.29

7 W10172597 Panel, Drawer Frnt (black) Appelez-nous -
7 W10172596 Panel, Drawer Frnt (white) Special Order $ 75.36

7 W10172599 Panel, Drawer Frnt (stainless) Appelez-nous -
8 W10173314 Panel, Inner Appelez-nous -
9 8038P037-60 Drawer, Stop Appelez-nous -
11 3406P034-51 Rail, Drawer Special Order $ 33.42

12 7118P032-60 Shaft, Storage Drawer Roller Appelez-nous -
13 W10272883 Roller, Drawer Special Order $ 7.90

14 7103P190-60 Nut Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

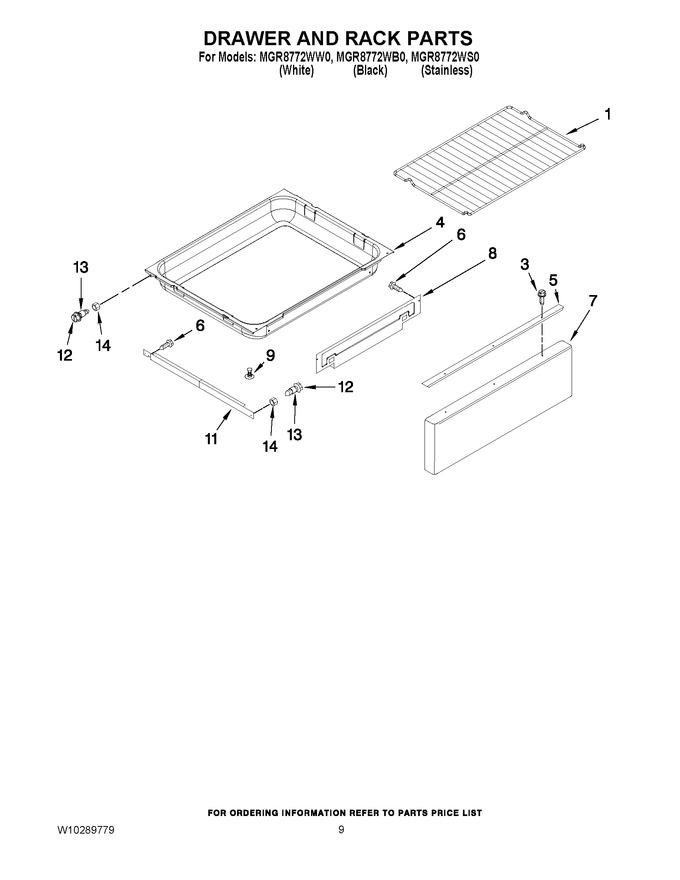

Diagram for MGR8772WS0
