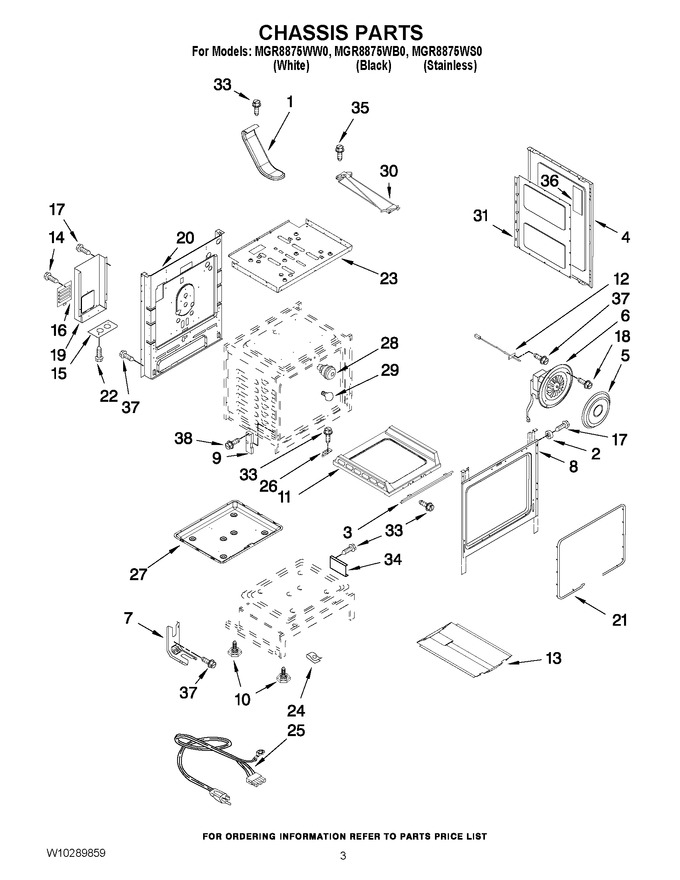

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8026P080-60 | Vent, Oven |
|
- | |||||
| 2 | 74008690 | Spacer, Side Panel (Replaces: 8010P148-60) |
|
$ 22.74 | |||||
| 3 | 3807P680-45 | Support, Oven Bottom |
|
$ 33.39 | |||||
| 4 | 2618F172-69 | Panel, Side (black) |
|
$ 81.90 | |||||
| 4 | 2618F172-58 | Panel, Side (white) |
|
$ 47.61 | |||||
| 5 | 3605F305-19 | Plate, Convection |
|
- | |||||
| 6 | WP7427P104-60 | Motor, Convection (Replaces: 7427P104-60) |
|
$ 343.33 | |||||
| 7 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F656-51) |
|
Immediately | $ 6.11 | ||||
| 8 | N/P | Frame, Front (not Serviced) |
|
- | |||||
| 9 | WP74010551 | Hinge, Receiver (Replaces: 7106P125-60) |
|
Immediately | $ 14.70 | ||||
| 10 | W11665456 | Foot, Leveler (Replaces: 7101P507-60) |
|
Immediately | $ 29.52 | ||||
| 11 | WPW10211368 | Bottom, Oven (Replaces: W10211367) |
|
Immediately | $ 337.76 | ||||
| 12 | WPW10131827 | Sensor, Oven (Replaces: W10131827) |
|
$ 275.58 | |||||
| 13 | W11775243 | Baffle, Burner (Replaces: 3601P356-45) |
|
$ 91.47 | |||||
| 14 | WP98008545 | Screw (Replaces: 3196179) |
|
$ 18.60 | |||||
| 15 | 3605P146-51 | Plate, Conduit |
|
- | |||||
| 16 | 4005P704-51 | Panel, Access |
|
$ 7.07 | |||||
| 17 | 7101P618-60 | Screw |
|
- | |||||
| 18 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 19 | W10243045 | Cover, Lower Wire |
|
- | |||||
| 20 | W10205618 | Back, Main |
|
$ 78.53 | |||||
| 21 | W11562931 | Seal, Oven (Replaces: W10162385) |
|
Immediately | $ 87.76 | ||||
| 22 | WP4159193 | Screw (Replaces: 7101P336-60) |
|
$ 5.07 | |||||
| 23 | 3604P409-51 | Shield, Heat |
|
- | |||||
| 24 | 74008835 | Clip (Replaces: 7112P158-60) |
|
$ 10.44 | |||||
| 25 | 7402P109-60 | Cord, Power |
|
$ 8.90 | |||||
| 26 | 3801P798-51 | Bracket, Oven Bottom |
|
- | |||||
| 27 | 3401F082-45 | Pan, Bake |
|
- | |||||
| 28 | W11594027 | Light Assembly (Replaces: 3196701) |
|
Immediately | $ 87.01 | ||||
| 29 | 8009 | Bulb, Oven Light (Replaces: 7407P103-60) |
|
Immediately | $ 18.67 | ||||
| 30 | W10792991 | Latch, Door Lock (Replaces: 8002P104-60) |
|
$ 339.59 | |||||
| 31 | 3804F316-51 | Retainer, Insulation |
|
- | |||||
| 33 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 8.44 | |||||
| 34 | 3801P822-45 | Bracket, Oven |
|
$ 5.27 | |||||
| 35 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 36 | 7002P480-60 | Insulation |
|
- | |||||
| 37 | WP7101P485-60 | Screw, Anti Tip (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 38 | WP4159193 | Screw (Replaces: 7101P282-60) |
|
$ 5.07 | |||||
| NI | 3804F300-51 | Retainer, Insul. |
|
$ 69.39 | |||||
| NI | 4820F015-59 | Strap, Insulation |
|
$ 9.79 | |||||
| NI | W10243056 | Insulation, Back |
|
$ 57.29 | |||||
| NI | 7002P424-60 | Insulation, Wrap |
|
- |
