01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Manifold Parts

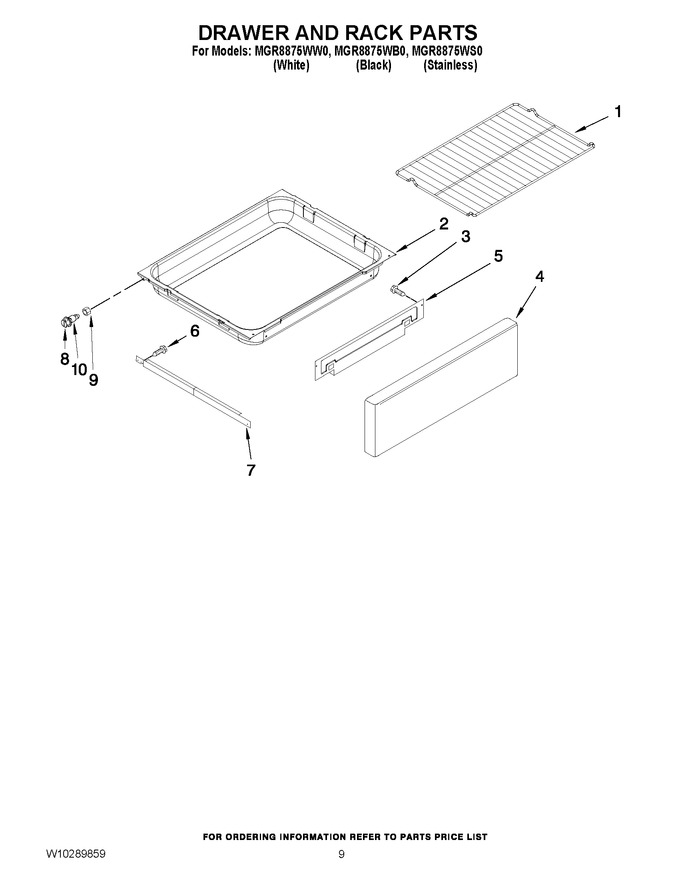

05 - Door Parts
06 - Drawer And Rack Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (Replaces: W10179196) |
|
Immediately | $ 46.84 | ||||
| 2 | WP3405F037-80 | Drawer (Replaces: 3405F037-80) |
|
$ 355.81 | |||||
| 3 | W11244557 | Screw (Replaces: 3196173) |
|
$ 14.29 | |||||
| 4 | W10172599 | Panel, Drawer Frnt (stainless) |
|
- | |||||
| 4 | W10172596 | Panel, Drawer Frnt (white) |
|
$ 75.36 | |||||
| 4 | W10172597 | Panel, Drawer Frnt (black) |
|
- | |||||
| 5 | W10173314 | Panel, Inner |
|
- | |||||
| 6 | 8038P037-60 | Drawer, Stop |
|
- | |||||
| 7 | 3406P034-51 | Rail, Drawer |
|
$ 33.42 | |||||
| 8 | 7118P032-60 | Shaft, Storage Drawer Roller |
|
- | |||||
| 9 | W10272883 | Roller, Drawer |
|
$ 7.90 | |||||
| 10 | 7103P190-60 | Nut |
|
- |
