SELECT A DIAGRAM

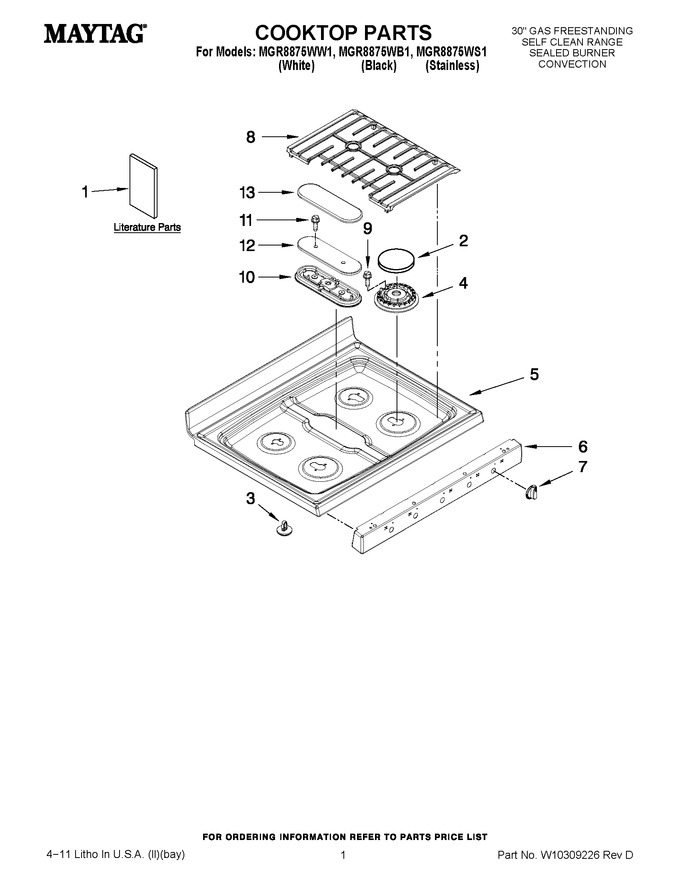

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts


06 - Drawer And Rack Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10258096		Installation Instructions		Appelez-nous	-
1	W10239464		Owners Manual		Appelez-nous	-
1	W10239476		Wiring Diagram (english)		Appelez-nous	-
1	W10239477		Wiring Diagram (french)		Appelez-nous	-
1	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
2	W10183373		Cap, Burner (wetstone)		Appelez-nous	-
2	WPW10183375		Cap, Burner (black)   (Replaces: W10183375)				$ 154.94
3	74008761		Spacer, Snap-in   (Replaces: 8010P149-60)				$ 8.81
4	WPW10406243		Burner ((lr))   (Replaces: 8286181)			Immediately	$ 39.08
4	WPW10336094		Burner, Center   (Replaces: W10169577)				$ 227.81
4	WPW10406878		Burner ((rf & Lf))   (Replaces: 8286183)				$ 107.48
4	WPW10406283		Burner ((rr))   (Replaces: W10194076)				$ 78.02
5	W10237151		Cooktop (black)		Appelez-nous	-
5	W10237150		Cooktop (white)		Appelez-nous	-
6	W10211380		Panel, Manifold (white)				$ 66.27
6	W10211381		Panel, Manifold (black)				$ 137.14
6	W10211395		Panel, Manifold (stainless)		Appelez-nous	-
7	WPW10200192		Knob, Control (white)   (Replaces: W10200192)			Immediately	$ 83.92
7	WPW10111302		Knob, Control (stainless)   (Replaces: W10111302)				$ 110.31
7	WPW10200193		Knob, Control (black)   (Replaces: W10200193)				$ 24.18
8	W10225516		Grate, Burner (wetstone)		Appelez-nous	-
8	W10225517		Grate, Burner (black)				$ 112.93
9	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 8.56
10	WPW10333445		Burner, Center   (Replaces: W10169578)				$ 110.05
11	W10217535		Screw, Cap				$ 21.92
12	WPW10333445		Cover, Cap   (Replaces: W10169578)				$ 110.05
13	WPW10171140		Burner, Cap (black)   (Replaces: W10171140)				$ 168.47
13	W10171137		Burner, Cap (wetstone)				$ 116.61

    View Diagram in Separate Window       Print Part List
