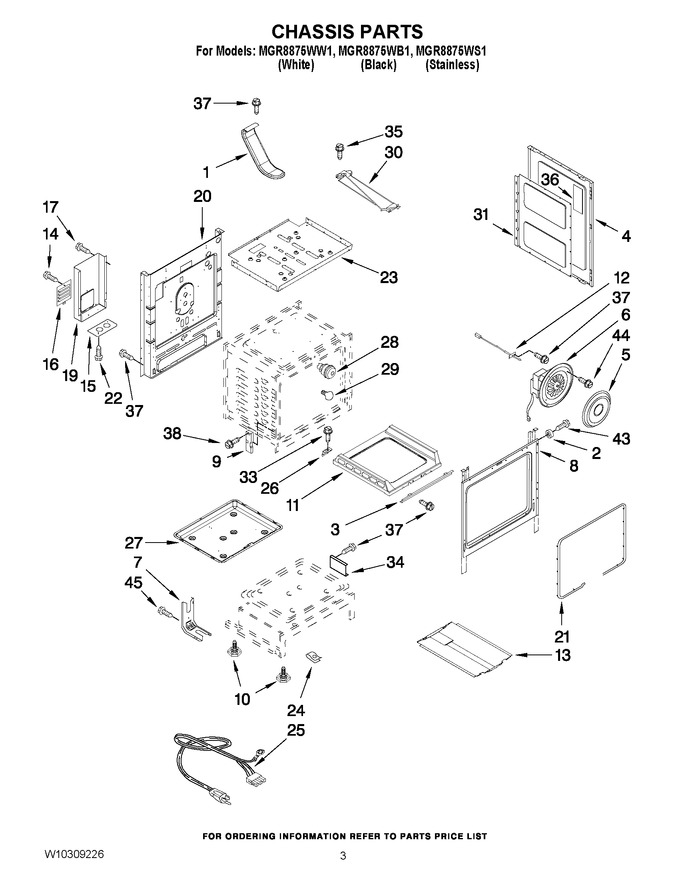

03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts


06 - Drawer And Rack Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8026P080-60		Vent, Oven		Appelez-nous	-
2	74008690		Spacer, Side Panel   (Replaces: 8010P148-60)				$ 21.66
3	3807P680-45		Support, Oven Bottom				$ 33.39
4	2618F172-69		Panel, Side (black)				$ 81.90
4	2618F172-58		Panel, Side (white)				$ 47.61
5	3605F305-19		Plate, Convection		Appelez-nous	-
6	WP7427P104-60		Motor, Convection   (Replaces: 7427P104-60)				$ 326.98
7	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F656-51)			Immediately	$ 5.21
8	N/P		Frame, Front (not Serviced)		Appelez-nous	-
9	WP74010551		Hinge, Receiver   (Replaces: 7106P125-60)			Immediately	$ 14.00
10	W11665456		Foot, Leveler   (Replaces: 7101P507-60)			Immediately	$ 28.11
11	WPW10211368		Bottom, Oven   (Replaces: W10211367)			Immediately	$ 318.97
12	WPW10131827		Sensor, Oven   (Replaces: W10131827)				$ 262.46
13	W11775243		Baffle, Burner   (Replaces: 3601P356-45)				$ 84.71
14	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.02
15	3605P146-51		Plate, Conduit		Appelez-nous	-
16	4005P704-51		Panel, Access				$ 7.07
17	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.19
19	W10243045		Cover, Lower Wire		Appelez-nous	-
20	W10205618		Back, Main				$ 78.53
21	W11562931		Seal, Oven   (Replaces: W10162385)			Immediately	$ 87.76
22	WP4159193		Screw   (Replaces: 7101P336-60)				$ 4.77
23	3604P409-51		Shield, Heat		Appelez-nous	-
24	74008835		Clip   (Replaces: 7112P158-60)				$ 9.94
25	7402P109-60		Cord, Power				$ 8.90
26	3801P798-51		Bracket, Oven Bottom		Appelez-nous	-
27	3401F082-45		Pan, Bake		Appelez-nous	-
28	W11594027		Light Assembly   (Replaces: 3196701)			Immediately	$ 87.01
29	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 18.67
30	W10792991		Latch, Door Lock   (Replaces: W10275451)				$ 339.59
31	3804F316-51		Retainer, Insulation		Appelez-nous	-
33	WP3196154		Screw   (Replaces: 3196154)				$ 7.82
34	3801P822-45		Bracket, Oven				$ 5.27
35	W11169708		Screw   (Replaces: 3196560)				$ 13.36
36	W10182346		Insulation				$ 77.83
37	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.02
38	WP4159193		Screw   (Replaces: 7101P282-60)				$ 4.77
43	7101P618-60		Screw		Appelez-nous	-
44	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.19
45	WP7101P485-60		Screw, Anti Tip   (Replaces: 7101P485-60)				$ 29.26
NI	3804F300-51		Retainer, Insul.				$ 66.09
NI	4820F015-59		Strap, Insulation				$ 9.32
NI	W10243056		Insulation, Back				$ 57.29
NI	7002P480-60		Insulation, Bottom		Appelez-nous	-
NI	7002P424-60		Insulation, Wrap		Appelez-nous	-
