SELECT A DIAGRAM

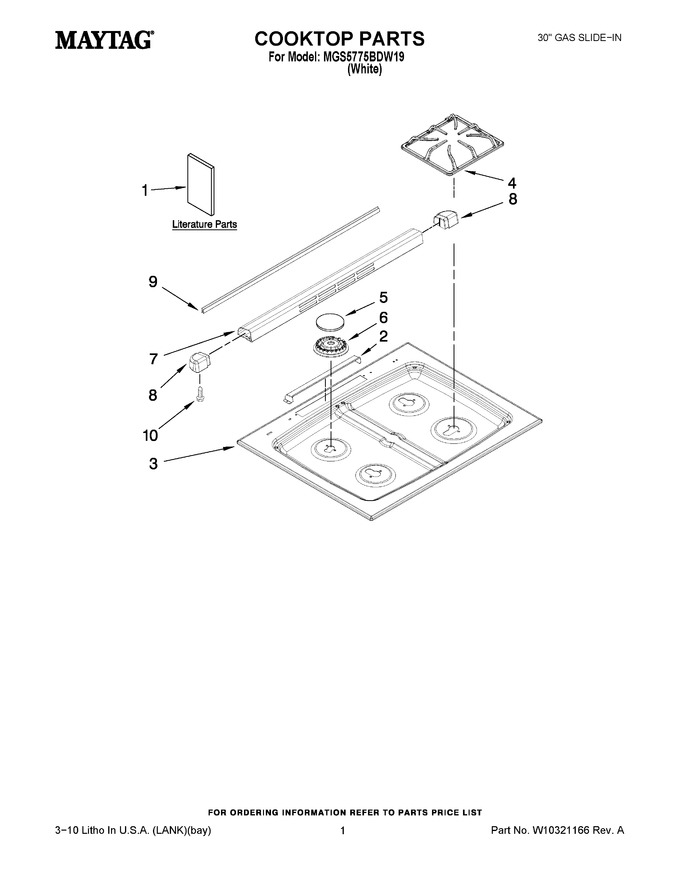

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts


06 - Drawer And Rack Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8119P167-60		Wiring Diagram		Appelez-nous	-
1	8101P667-60		Installation Instructions		Appelez-nous	-
1	8113P772-60		Owners Manual		Appelez-nous	-
1	9762761		Brochure, Tips Safer Cooking (english)		Appelez-nous	-
1	W10065852		Brochure, Tips Safer Cooking (french)		Appelez-nous	-
2	3601F221-45		Baffle, Vent Cover				$ 28.30
3	W10204419		Cooktop (white)		Appelez-nous	-
4	7518P194-60		Grate, Burner (4) (gray)		Appelez-nous	-
5	WP74007752		Cap, Burner (gray 12.5k, Lf/rr)   (Replaces: 7504P205-60)				$ 117.56
5	WP74007420		Cap, Burner (gray 16k, Rf)   (Replaces: 7504P141-60)				$ 131.01
5	7504P139-60		Cap, Burner (gray 5k, Lr)		Appelez-nous	-
6	WPW10406878		Base, Burner (17k (1) Rf)   (Replaces: 8286183)				$ 107.48
6	WPW10406243		Base, Burner (6k (1) Lr)   (Replaces: 8286181)			Immediately	$ 39.08
6	WPW10406797		Base, Burner (12k (2) Lf/rr)   (Replaces: 8286182)				$ 92.91
7	7724P198-60		Cover, Vent		Appelez-nous	-
8	7726P301-60		End Cap, Vent (gray, Left)		Appelez-nous	-
8	7726P300-60		End Cap, Vent (gray, Right)		Appelez-nous	-
9	7201P143-60		Gasket, Door Top				$ 16.81
10	W11233072		Screw (vent End Cap)   (Replaces: 7101P634-60)			Immediately	$ 14.72

    View Diagram in Separate Window       Print Part List
