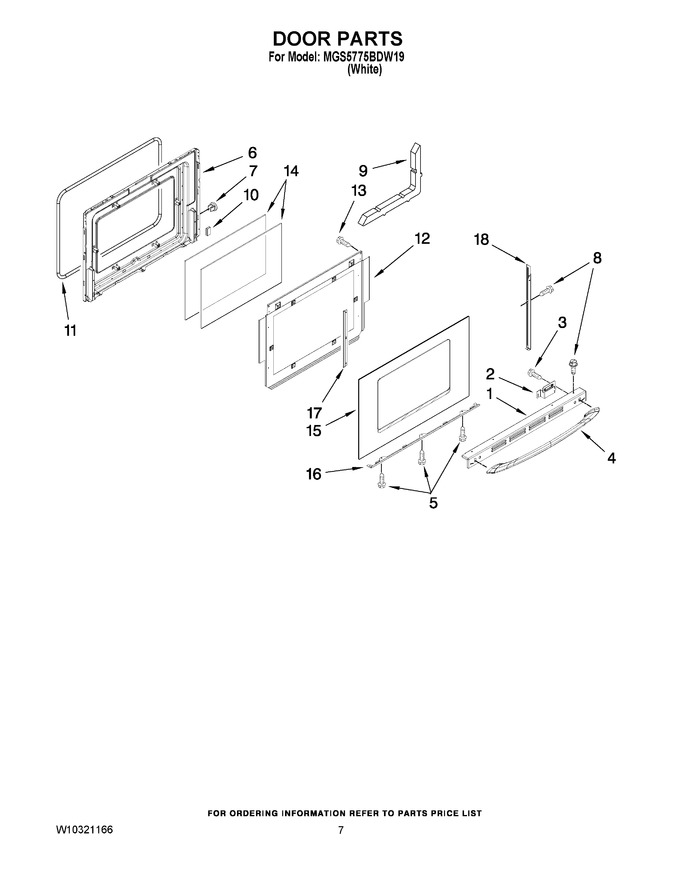

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3608F141-71 | Trim, Door Top (white) |
|
$ 98.12 | |||||
| 2 | 3801F831-45 | Bracket, Handle (right) |
|
$ 22.37 | |||||
| 2 | 3801F832-45 | Bracket, Handle (left) |
|
$ 22.30 | |||||
| 3 | WP74006515 | Screw, Handle (Replaces: 7101P681-60) |
|
$ 8.84 | |||||
| 4 | WP74011768 | Handle, Door (white) (Replaces: 7701P517-60) |
|
Immediately | $ 215.62 | ||||
| 5 | WP98008544 | Screw (glass Support) (Replaces: 7101P636-60) |
|
$ 13.87 | |||||
| 6 | 2402W312-19 | Liner, Door |
|
$ 144.50 | |||||
| 7 | WP74001574 | Nut, Snap (4) (Replaces: 7103P141-60) |
|
Immediately | $ 11.74 | ||||
| 8 | 7101P208-60 | Screw, Trim |
|
$ 11.92 | |||||
| 9 | 7002P246-60 | Insulation, Door |
|
$ 58.49 | |||||
| 10 | WP74005546 | Spacer (Replaces: 8010P130-60) |
|
$ 11.06 | |||||
| 11 | WPW10162384 | Seal, Door (Replaces: W10162384) |
|
Immediately | $ 86.23 | ||||
| 12 | 3601F373-51 | Baffle, Retainer |
|
$ 284.93 | |||||
| 13 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 14 | 74003645 | Glass, Inner (2) (Replaces: 7902P436-60) |
|
Immediately | $ 223.59 | ||||
| 15 | 7902P736-60 | Glass, Door (white) |
|
- | |||||
| 16 | WP3807F708-71 | Trim, Door Bottom (white) (Replaces: 3807F708-71) |
|
$ 168.97 | |||||
| 17 | 3801F886-51 | Bracket, Glass |
|
$ 38.25 | |||||
| 18 | WP3608F116-71 | Trim, Door Side (white, Right) (Replaces: 3608F116-71) |
|
$ 130.68 | |||||
| 18 | WP3608F117-71 | Trim, Door Side (white, Left) (Replaces: 3608F117-71) |
|
$ 130.00 |
