01 - Cooktop Parts

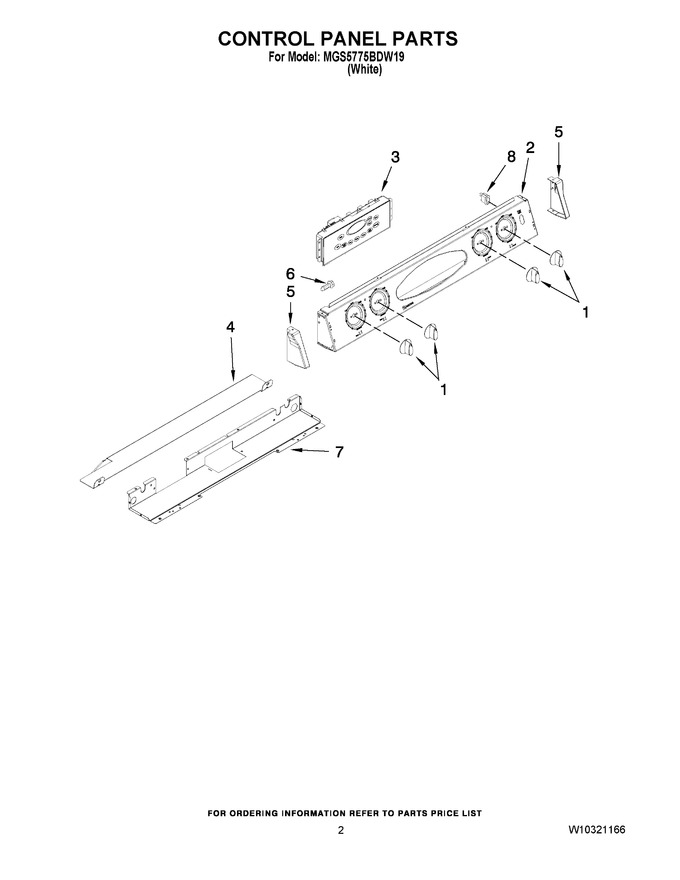

02 - Control Panel Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer And Rack Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74010975 | Knob (4) (white) (Replaces: 7733P460-60) |
|
$ 21.54 | |||||
| 2 | 2616D348-81 | Panel, Control (white) |
|
$ 216.02 | |||||
| 3 | 5701M890-60 | Control W/overlay (white) |
|
$ 353.39 | |||||
| 4 | 3604F421-51 | Shield, Control |
|
$ 32.71 | |||||
| 5 | 7726P333-60 | Cap, End (white, Left) |
|
$ 17.04 | |||||
| 5 | 7726P332-60 | Cap, End (white, Right) |
|
$ 30.59 | |||||
| 6 | WP98008544 | Screw (end Cap) (Replaces: 7101P636-60) |
|
$ 13.87 | |||||
| 7 | 3807F729-51 | Support, Cntrl Pnl |
|
- | |||||
| 8 | 3604F421-51 | Shield, Control |
|
$ 32.71 |
