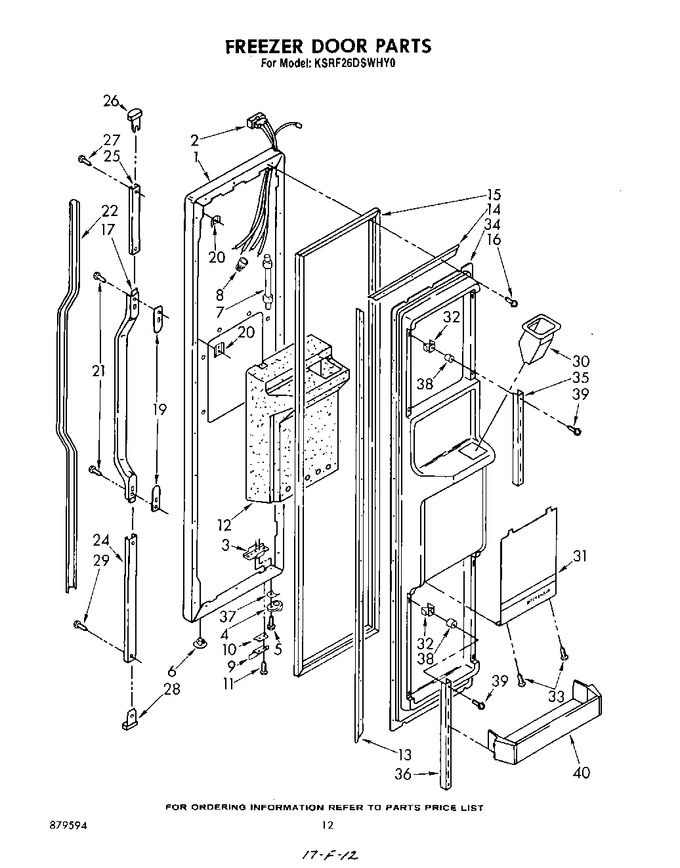

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1107328		Exterior Door Panel Freezer (white)		Appelez-nous	-
1	1107704		Exterior Door Panel Freezer (almond)		Appelez-nous	-
1	1107702		Exterior Door Panel Freezer (toast)		Appelez-nous	-
1	1107703		Exterior Door Panel Freezer (platinum)		Appelez-nous	-
2	851373		Plug, Crossover		Appelez-nous	-
3	988402		Tap Plate		Appelez-nous	-
4	4318165		Door Closer, Cam   (Replaces: 986758)			Immediately	$ 29.74
5	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 8.40
6	534927		Hole Plug		Appelez-nous	-
7	991415		Tube, Door Wiring		Appelez-nous	-
8	227991		Wire Connector		Appelez-nous	-
9	1107200		Bracket, Door Stop		Appelez-nous	-
10	988421		Shim		Appelez-nous	-
11	488549		Screw, 89 X 5/8		Appelez-nous	-
12	1107957		Dispenser, Insulation		Appelez-nous	-
13	982887		Retainer, Gasket Side		Appelez-nous	-
14	983643		Retainer, Gasket Top & Bottom		Appelez-nous	-
15	939342		Door Gasket, Magnetic		Appelez-nous	-
16	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
16	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
17	1107215		Handle Center		Appelez-nous	-
19	1107651		Shim, Handle Center		Appelez-nous	-
20	941242		Screw Anchor		Appelez-nous	-
21	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 8.05
22	1107235		Insert, Handle		Appelez-nous	-
22	1107931		Insert, Handle (black) (for Platinum Model)		Appelez-nous	-
24	1107209		Retainer, Insert (bottom)		Appelez-nous	-
25	1107243		Retainer Insert (top)		Appelez-nous	-
26	1107341		End Cap		Appelez-nous	-
27	489075		Screw, 10-32 X 5/8		Appelez-nous	-
28	1107342		End Cap, Bottom		Appelez-nous	-
29	488915		Screw, 6-32 X 1/2		Appelez-nous	-
30	987188		Ice Chute		Appelez-nous	-
31	1107377		Overlay, Ice Dispenser		Appelez-nous	-
32	537095		Expansion Clip		Appelez-nous	-
33	WP488729		Screw, 8 X 1/2   (Replaces: 488320)			Immediately	$ 8.28
34	1107364		Interior, Door Panel		Appelez-nous	-
35	1107373		Door Shelf, Ladder (top)		Appelez-nous	-
36	1107375		Door Shelf, Ladder (bottom)		Appelez-nous	-
37	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.96
38	1107352		Spacer, Shelf Ladder (8)		Appelez-nous	-
39	489188		Screw, 8-15 X 1 1/4 (8)		Appelez-nous	-
40	1107369		Door Shelf, Cantilever		Appelez-nous	-
