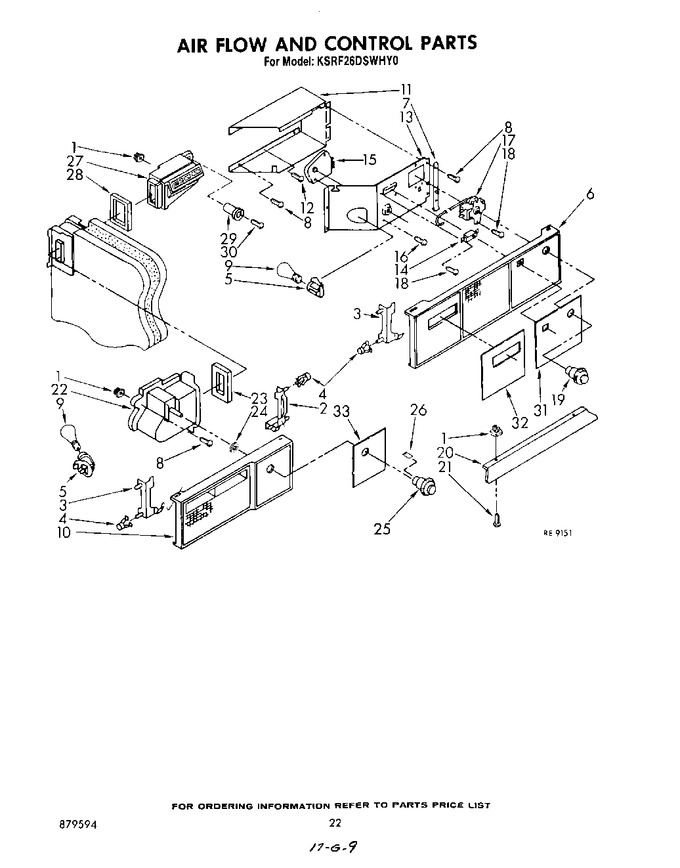

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 842339 | Grommet |
|
- | |||||
| 2 | 842355 | Support, Light Lens (r.s.) |
|
- | |||||
| 3 | 842356 | Support, Light Lens (l.s.) |
|
- | |||||
| 4 | 843945 | Clip, Tubular |
|
- | |||||
| 5 | 4387478 | Socket, Light (Replaces: 851067) |
|
Immediately | $ 115.67 | ||||
| 6 | 1106241 | Light, Lens |
|
- | |||||
| 7 | 984552 | Support, Light Lens |
|
- | |||||
| 8 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.72 | |||||
| 9 | 8009 | Light Bulb (Replaces: 527949) |
|
Immediately | $ 18.67 | ||||
| 10 | 1106314 | Light Lens, Freezer |
|
- | |||||
| 11 | 984550 | Box, Control |
|
- | |||||
| 12 | 488474 | Screw, 8-32 X 3/8 |
|
- | |||||
| 13 | 934045 | Control Box Front |
|
- | |||||
| 14 | 938049 | Switch, Toggle |
|
- | |||||
| 15 | W10822278 | Defrost Timer, 8 Hours (Replaces: 943435) |
|
Immediately | $ 34.44 | ||||
| 16 | WP3388228 | Screw, 6-20 X 3/8 (Replaces: 488911) |
|
$ 7.30 | |||||
| 17 | WP4317800 | Thermostat & Barrier (Replaces: 1107272) |
|
Immediately | $ 278.68 | ||||
| 18 | 488624 | Screw, 8-32 X 3/8 |
|
- | |||||
| 19 | 836482 | Knob, Temperature |
|
- | |||||
| 20 | SM999 | Baffle, Liner Top (Replaces: 983369) |
|
Immediately | $ 30.26 | ||||
| 21 | WP489069 | Screw, 8 X 1/2 (Replaces: 488772) |
|
Immediately | $ 8.40 | ||||
| 22 | 841269 | Air Scoop Assembly |
|
- | |||||
| 23 | 844871 | Gasket, Air Scoop |
|
- | |||||
| 24 | 938439 | Retainer, Damper |
|
- | |||||
| 25 | 837445 | Control Knob |
|
- | |||||
| 26 | 837444 | Knob, Retainer |
|
- | |||||
| 27 | 991158 | Air Diffuser |
|
- | |||||
| 28 | 842394 | Gasket, Air Diffuser |
|
- | |||||
| 29 | 836667 | Spacer |
|
- | |||||
| 30 | 488357 | Screw, 8 X 1-1/4 |
|
- | |||||
| 31 | 1107357 | Overlay, Light Lens (r.s) |
|
- | |||||
| 32 | 1107077 | Overlay, Light Lens (l.s) |
|
- | |||||
| 33 | 1107393 | Overlay, Light Lens (freezer) |
|
- |
