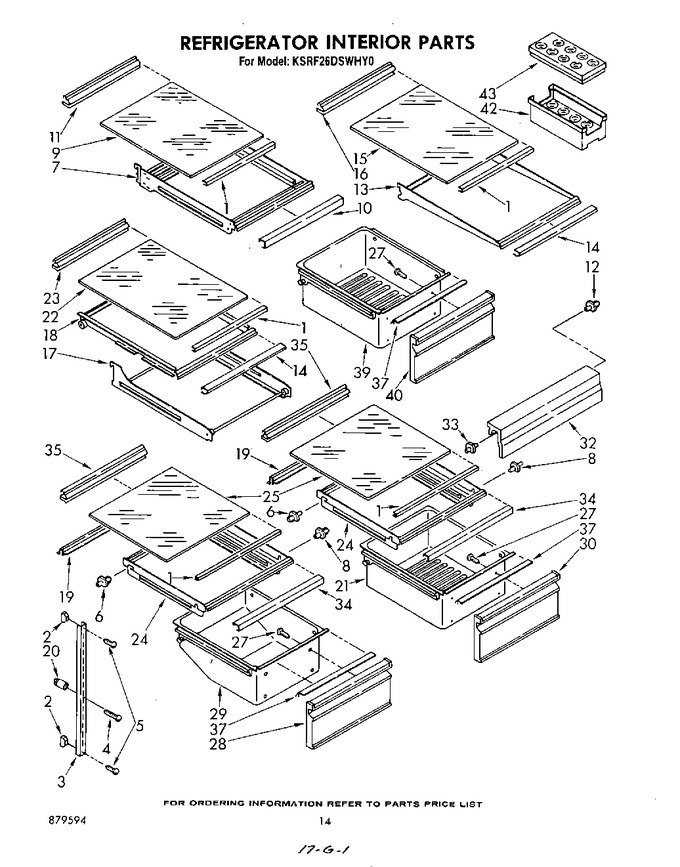

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1107265		Shelf Gasket, Glass		Appelez-nous	-
2	520965		Screw, Support Ladder				$ 31.35
3	1107616		Shelf Ladder (2)		Appelez-nous	-
4	488357		Screw, 8 X 1-1/4		Appelez-nous	-
4	488623		Screw, (repair) 10 X 1 1/4		Appelez-nous	-
5	488960		Screw, 8-32 X 1-1/4		Appelez-nous	-
5	488980		Screw (repair)		Appelez-nous	-
6	1107967		Shelf, Stud		Appelez-nous	-
7	1107433		Frame, Utility		Appelez-nous	-
8	1107968		Shelf, Stud		Appelez-nous	-
9	1107270		Glass, Utility		Appelez-nous	-
10	1107592		Trim, Frame		Appelez-nous	-
11	1107340		Reflector, Glass Shelf		Appelez-nous	-
12	521878		Stud (2)		Appelez-nous	-
13	1107061		Shelf, Cantilever		Appelez-nous	-
14	1107073		Shelf Trim, Cantilever		Appelez-nous	-
15	1107065		Glass, Cantilever Shelf		Appelez-nous	-
16	1107069		Reflector, Cantilever		Appelez-nous	-
17	1107085		Frame, Cantilever Shelf		Appelez-nous	-
18	1107081		Roll Out Shelf, Cantilever		Appelez-nous	-
19	1107481		Crisper Gasket Rear		Appelez-nous	-
20	512923		Grommet		Appelez-nous	-
21	1107875		Pan Crisper		Appelez-nous	-
22	1107089		Glass, Rollout Shelf		Appelez-nous	-
23	1107642		Reflector, Glass Shelf		Appelez-nous	-
24	1107009		Crisper Cover, Frame		Appelez-nous	-
25	1107290		Glass, Cantilever		Appelez-nous	-
27	488132		Screw (repair)		Appelez-nous	-
27	WP488729		Screw, 8 X 1/2   (Replaces: 488783)			Immediately	$ 8.28
28	1107181		Front, Cover Meat Pan		Appelez-nous	-
29	1107876		Pan, Meat		Appelez-nous	-
30	1107157		Front Cover, Crisper		Appelez-nous	-
32	988364		Light Lens, Lower		Appelez-nous	-
33	937513		Stud, Light Lens		Appelez-nous	-
34	1107197		Trim, Frame		Appelez-nous	-
35	1107634		Reflector, Glass Shelf		Appelez-nous	-
37	1107305		Pan Gasket, Front		Appelez-nous	-
39	1107877		Tray, Utility		Appelez-nous	-
40	1107437		Front, Utility Tray		Appelez-nous	-
42	1107384		Egg Container, Bottom		Appelez-nous	-
43	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
43	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
43	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
43	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
43	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
43	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
43	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
43	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
43	1107388		Egg Container, Top		Appelez-nous	-
43	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
43	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
43	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
43	285368		Enamel, Platinum (1 Qt. Uncut)		Appelez-nous	-
43	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
43	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
43	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
43	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
43	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
43	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
43	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
43	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
43	833938		Kit, Terminal Connector				$ 8.47
43	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
43	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
43	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
	LIT1107415		Guide, Use & Care		Appelez-nous	-
	LIT1101159		Service & Wiring Sheet		Appelez-nous	-
	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
	LIT1107427		Energy Guide		Appelez-nous	-
	LIT879594		List, Parts		Appelez-nous	-
	285365		Paint, Spray (13 Oz.) (toast)		Appelez-nous	-
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
	350942		Primer White (13 Oz. Spray Can)				$ 94.14
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
