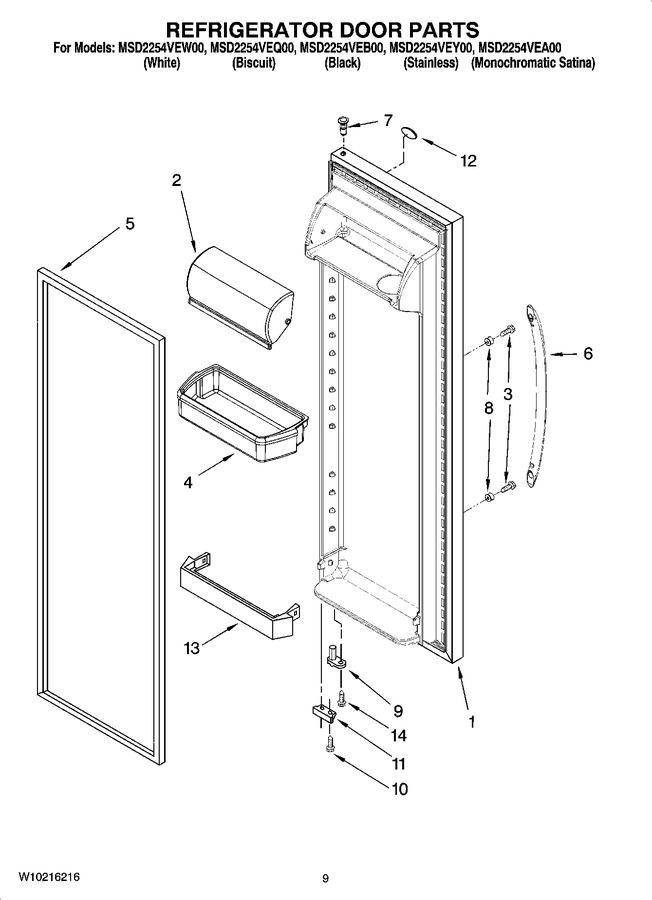

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10175178		Refrigerator Door (includes Item 5) (white)		Appelez-nous	-
1	W10175180		Refrigerator Door (includes Item 5) (biscuit)		Appelez-nous	-
1	W10175179		Refrigerator Door (includes Item 5) (black)		Appelez-nous	-
1	W10175182		Refrigerator Door (includes Item 5) (stainless)		Appelez-nous	-
1	W10175181		Refrigerator Door (includes Item 5) (monochromatic)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 85.16
3	WP488163		Screw   (Replaces: 488208)				$ 7.54
4	WPW10321304		Door Bin (3)   (Replaces: 2304235)			Immediately	$ 44.73
5	W10136732		Door Gasket, Magnetic (grey)   (Replaces: 2327161)			Immediately	$ 344.00
5	2159081		Door Gasket, Magnetic (black)   (Replaces: 2309653)				$ 319.60
5	2159073		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309600)				$ 317.32
6	13004701W		Handle (includes 3) (white)   (Replaces: 67006114)				$ 184.73
6	67006982		Handle (includes 3) (biscuit)				$ 188.95
6	67006115		Handle (includes 3) (black)		Appelez-nous	-
6	W11690159		Handle (includes 3) (stainless/satina)   (Replaces: 67006391)				$ 165.49
7	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.76
8	WPW10170540		Stud, Handle   (Replaces: 2326259)			Immediately	$ 8.51
9	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
10	WP489483		Screw   (Replaces: 489420)				$ 10.87
11	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
11	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 40.03
12	2324038		Nameplate				$ 68.18
13	WP2156022		Trivet   (Replaces: 2156022)			Immediately	$ 72.80
14	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
