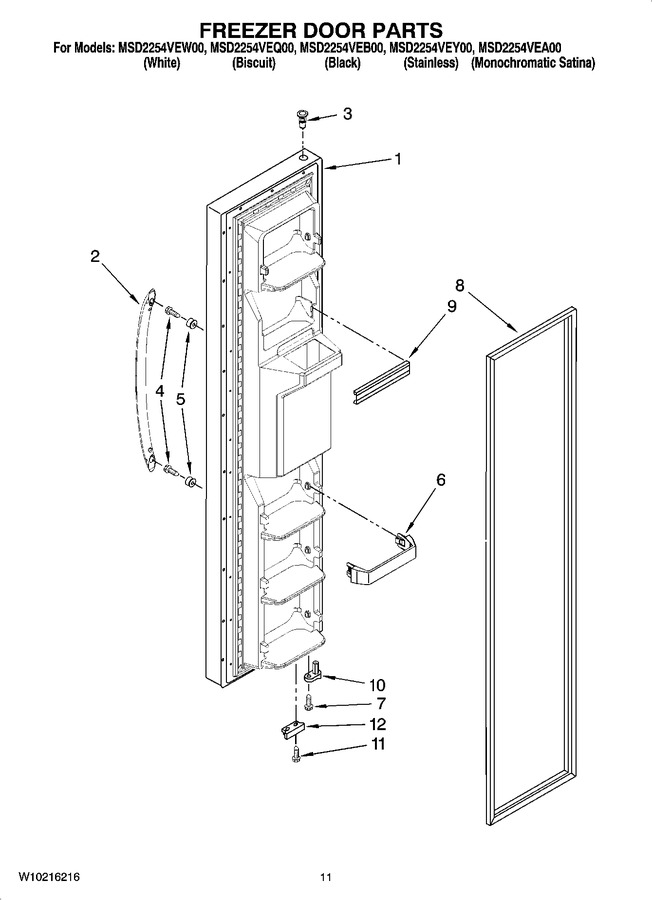

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10175200		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless)   (Replaces: W10175200)				$ 739.05
1	W10175198		Freezer Door (includes Item 8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	W10175197		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10175199		Freezer Door (includes Item 8 And Dispenser Front Parts) (monochromatic)		Appelez-nous	-
1	W10175196		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	67006115		Handle (includes 4) (black)		Appelez-nous	-
2	W11690159		Handle (includes 4) (stainless/satina)   (Replaces: 67006391)				$ 165.49
2	13004701W		Handle (includes 4) (white)   (Replaces: 67006114)				$ 193.97
2	67006982		Handle (includes 4) (biscuit)				$ 198.40
3	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.76
4	WP488163		Screw   (Replaces: 488208)				$ 7.54
5	WPW10170540		Stud, Handle   (Replaces: 2326259)			Immediately	$ 8.51
6	WP2309717		Trivet (3)   (Replaces: 2309717)				$ 55.85
7	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
8	2159072		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309604)				$ 323.60
8	W10136733		Door Gasket, Magnetic (grey)   (Replaces: 2327162)				$ 341.89
8	2159080		Door Gasket, Magnetic (black)   (Replaces: 2309654)				$ 325.91
9	WPW10307490		Trim, Door Shelf   (Replaces: 2212375)			Immediately	$ 23.11
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
11	WP489483		Screw   (Replaces: 489420)				$ 10.87
12	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
12	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 40.03
