SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts

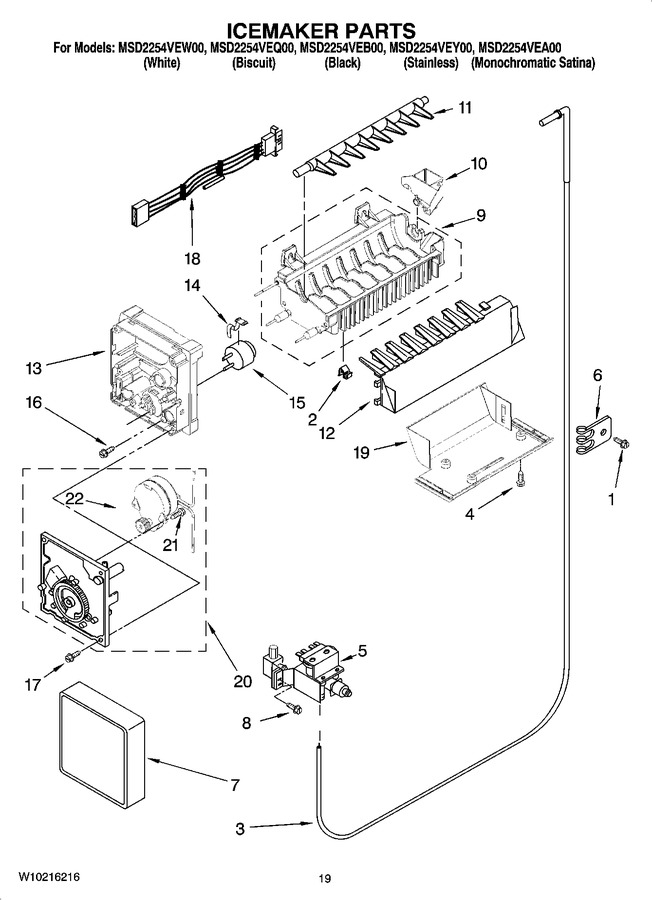

12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
2	WP628379		Clip, Fuse   (Replaces: 628379)				$ 10.57
3	WPW10140630		Fitting, Water Tube   (Replaces: W10140630)				$ 135.78
4	WP489478		Screw   (Replaces: 489478)				$ 7.75
5	W10822681		Filter Valve Asm   (Replaces: 2188709)			Immediately	$ 162.93
6	WP488366		Tube Clip   (Replaces: 2208136)				$ 11.18
7	WPW10289690		Cover   (Replaces: 2174358)			Immediately	$ 8.40
8	WPW10141625		Screw (2)   (Replaces: 488649)				$ 21.16
9	WPW10122550		Mold & Heater Assembly (also Order 542638)   (Replaces: W10122550)				$ 207.28
10	WPW10272168		Cup-water Fill   (Replaces: 2304969)				$ 72.84
11	626753		Ejector				$ 13.94
12	W10297245		Ice Striper   (Replaces: 2212318)				$ 72.98
13	WP2195914		Support   (Replaces: 2194712)				$ 104.57
14	WP2315522		Retainer,thermostat   (Replaces: 2315522)				$ 11.05
15	WP627985		Thermostat (also Order 542369 Cement Alumilastic)   (Replaces: 628397)				$ 109.18
16	8533917		Screw				$ 13.37
17	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.86
18	WPW10309401		Harness, Wiring   (Replaces: 2187484)				$ 126.27
19	W10131253		Bracket, Mounting		Appelez-nous	-
20	8201515		Module Assembly   (Replaces: 626691)			Immediately	$ 141.64
21	489136		Screw				$ 10.29
100	WPW10190961		Complete Icemaker Assembly   (Replaces: W10190961)			Immediately	$ 188.94
NI	542639		Cement, Alumilastic (1-1/4 Oz.)		Appelez-nous	-
NI	WP542638		Grease, Silicone (1/2 Oz)   (Replaces: 542638)			Immediately	$ 12.18
NI	WP503695		Cork Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
NI	WP505587		Sealer, Mastic (1 Qt.)   (Replaces: 505587)			Immediately	$ 173.95
NI	72032		Paint, Touch-up (1/2oz.) (black)			Immediately	$ 18.69
NI	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 12.30
NI	4392901		Paint, Pressurized Spray (12 Oz) (biscuit)		Appelez-nous	-
NI	350942		Paint, Pressurized Spray (12 Oz) (primer, White)				$ 89.66
NI	285006		Paint, Pressurized Spray(12 Oz.) (black)   (Replaces: 350939)				$ 57.04
NI	350930		Paint, Pressurized Spray (12 Oz.) ( White)			Immediately	$ 38.21
NI	8171357		Paint, Pressurized Spray (12 Oz.) (graphite)				$ 82.31
NI	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 26.45
NI	80051		Paint, Touch-up (1/2oz.) (graphite)				$ 7.64
NI	799340		Paint, Bulk (1 Qt.) (black)		Appelez-nous	-
NI	799344		Paint, Bulk (1 Qt.) (white)				$ 237.46
NI	4392900		Paint, Bulk (1 Qt.) (biscuit)		Appelez-nous	-
NI	8171358		Paint, Bulk (1 Qt.) (graphite)		Appelez-nous	-
NI	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
NI	479502		Tape, Vinyl(3/4 X 108``)				$ 66.77
NI	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
NI	833938		Kit, Terminal Connector				$ 8.07
NI	1117510		Torx Key				$ 5.84

    View Diagram in Separate Window       Print Part List
