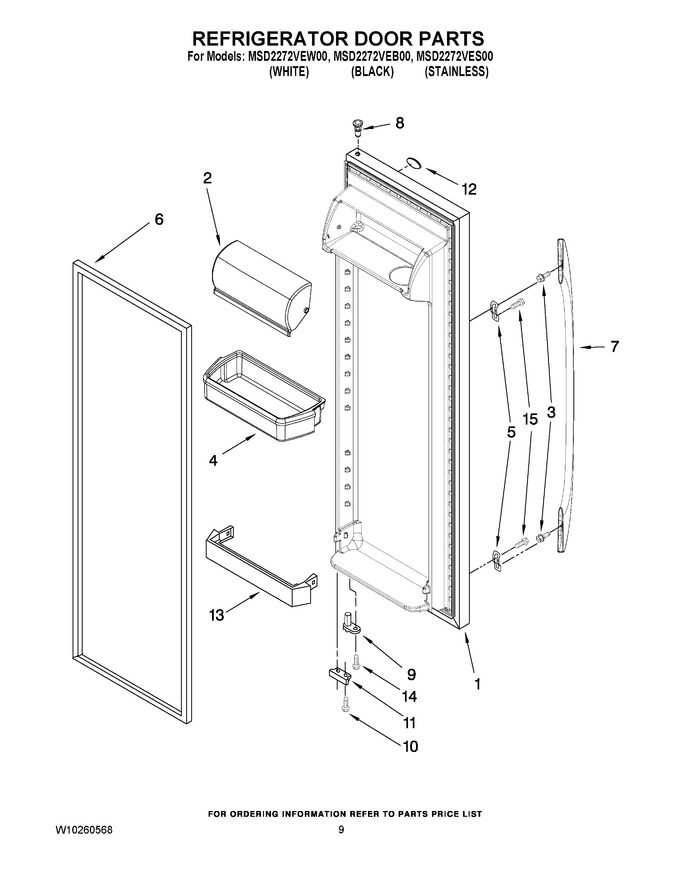

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10238690		Refrigerator Door (includes Item 6) (black)		Appelez-nous	-
1	W10248234		Refrigerator Door (includes Item 6) (stainless)		Appelez-nous	-
1	W10216914		Refrigerator Door (includes Item 6) (white)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 89.42
3	W10184500		Screw				$ 36.30
4	WP2203828		Door Bin (3)   (Replaces: 2203828)				$ 100.30
5	WP2255411		Clip   (Replaces: 2255411)				$ 36.55
6	2159081		Door Gasket, Magnetic (black)   (Replaces: 2309653)				$ 335.58
6	2159073		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309600)				$ 333.19
7	WPW10170739		Handle (stainless)   (Replaces: W10170739)				$ 363.92
7	WPW10170749		Handle (white)   (Replaces: W10170745)				$ 314.22
7	WPW10170750		Handle (black)   (Replaces: W10170746)				$ 309.83
8	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 8.15
9	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
10	WP489483		Screw   (Replaces: 489420)				$ 11.41
11	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 42.79
11	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 42.79
12	WPW10170766		Nameplate   (Replaces: W10170766)			Immediately	$ 70.50
13	WP2309941		Trivet, Shelf   (Replaces: 2309941)			Immediately	$ 76.32
14	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
15	WPW10288153		Screw   (Replaces: W10129563)			Immediately	$ 9.65

    View Diagram in Separate Window       Print Part List
