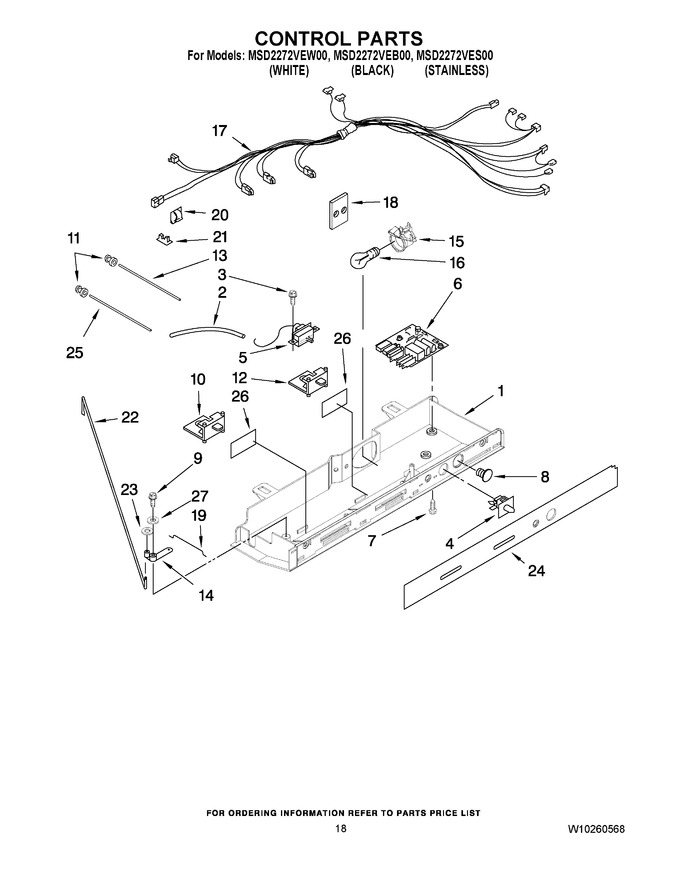

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2311721 | Control Box |
|
- | |||||
| 2 | WP2196003 | Tube Barrier, Thermostat (Replaces: 2196001) |
|
$ 8.35 | |||||
| 3 | 2006254 | Screw (Replaces: 489214) |
|
$ 13.79 | |||||
| 4 | WP2149705 | Light Switch (Replaces: 2149705) |
|
Immediately | $ 40.40 | ||||
| 5 | WP2315562 | Thermostat (Replaces: 2315562) |
|
Immediately | $ 106.18 | ||||
| 6 | WPW10366605 | Electronic Control (Replaces: W10135899) |
|
Immediately | $ 276.28 | ||||
| 7 | 489392 | Screw (2) (Replaces: 489398) |
|
$ 14.02 | |||||
| 8 | 940014 | Hole Plug |
|
$ 18.33 | |||||
| 9 | 627068 | Screw |
|
$ 12.73 | |||||
| 10 | 2181741 | Slide, Air Control |
|
$ 95.01 | |||||
| 11 | 2172906 | Grommet, Light Bar |
|
- | |||||
| 12 | 2161466 | Slide, Thermostat |
|
$ 22.28 | |||||
| 13 | 2179920 | Light Bar (rc) |
|
$ 37.08 | |||||
| 14 | 2161306 | Pivot Arm |
|
$ 9.65 | |||||
| 15 | 4387478 | Light Socket (Replaces: 2162085) |
|
Immediately | $ 115.67 | ||||
| 16 | 8009 | Light Bulb (Replaces: 527949) |
|
Immediately | $ 18.67 | ||||
| 17 | 2311632 | Control Box Harness |
|
$ 174.26 | |||||
| 18 | 2172931 | Heat Shield |
|
$ 73.90 | |||||
| 19 | 2161307 | Connecting Rod, Short |
|
- | |||||
| 20 | WP1115374 | Clip, Wiring (Replaces: 1115374) |
|
$ 8.14 | |||||
| 21 | 1115375 | Clip-wiring |
|
$ 11.15 | |||||
| 22 | 2161308 | Connecting Rod |
|
$ 180.72 | |||||
| 23 | 489391 | Fastener, Push-on |
|
$ 7.52 | |||||
| 24 | W10171457 | Front Cover, Control Box |
|
- | |||||
| 25 | 2179921 | Light Bar (fc) |
|
- | |||||
| 26 | 2175513 | Window |
|
- | |||||
| 27 | 489203 | Spring Washer |
|
- |
