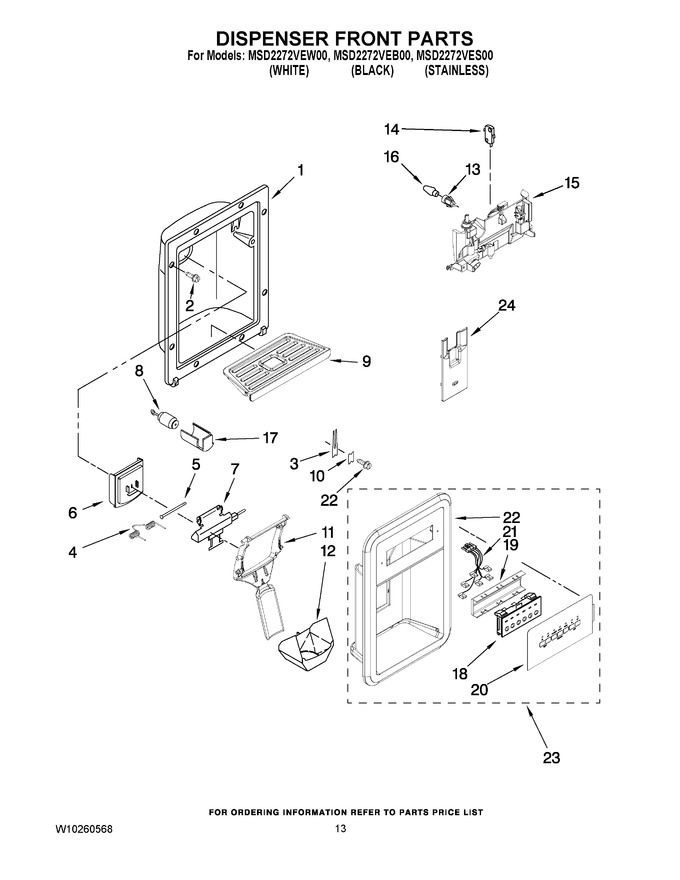

MSD2272VEB00 | Leon's : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	N/P	Housing, Dispenser (not Serviced)	Appelez-nous	-
2	8534081	Screw			$ 7.81
3	WP2194719	Retainer, Levers (Replaces: 2194719)		Immediately	$ 12.36
4	WPW10224328	Spring, Torsion (Replaces: 2304772)			$ 87.40
5	WP2196195	Pin (Replaces: 2196195)			$ 15.31
6	2328019	Door, Ice			$ 17.09
7	W10144021	Door Mechanism Assembly			$ 47.51
8	2205686	Mechanism Delay	Appelez-nous	-
9	W10192687	Grille, Overflow (black)			$ 75.15
9	W10192669	Grille, Overflow (white)			$ 39.47
10	WP2195051	Strain Relief (Replaces: 2195051)			$ 12.54
11	W10184800	Lever, Ice & Water (black)	Appelez-nous	-
11	W10144019	Lever, Ice & Water (white)			$ 53.09
12	W10144020	Ice Guide			$ 17.38
13	2180200	Socket, Light			$ 103.59
14	W10144092	Switch-limit			$ 40.14
15	W10144016	Bracket, Control			$ 72.40
16	WP22002263	Bulb, Light (Replaces: 3406124)		Immediately	$ 14.85
17	W10173403	Sleeve, Delay Mechanism	Appelez-nous	-
18	W10144028	Switch (Replaces: W10181070)			$ 273.81
19	W10180310	Switch Cover			$ 76.90
20	N/P	Overlay, Front Cover (not Available Order No.23)	Appelez-nous	-
21	N/P	Wire Assembly (not Available Order No.23)	Appelez-nous	-
22	N/P	Front Cover, Housing ((not Available, Order No.23)	Appelez-nous	-
23	W10173402	Front Cover Assembly (includes Items 18, 19, 20, 21, & 22) (white)	Appelez-nous	-
23	W10190585	Front Cover Assembly (includes Items 18, 19, 20, 21, & 22) (black)	Appelez-nous	-
24	W10191041	Well Cover (not Included In Front Cover Assembly) (black)	Appelez-nous	-
24	W10173408	Well Cover (not Included In Front Cover Assembly) (white)	Appelez-nous	-
