SELECT A DIAGRAM

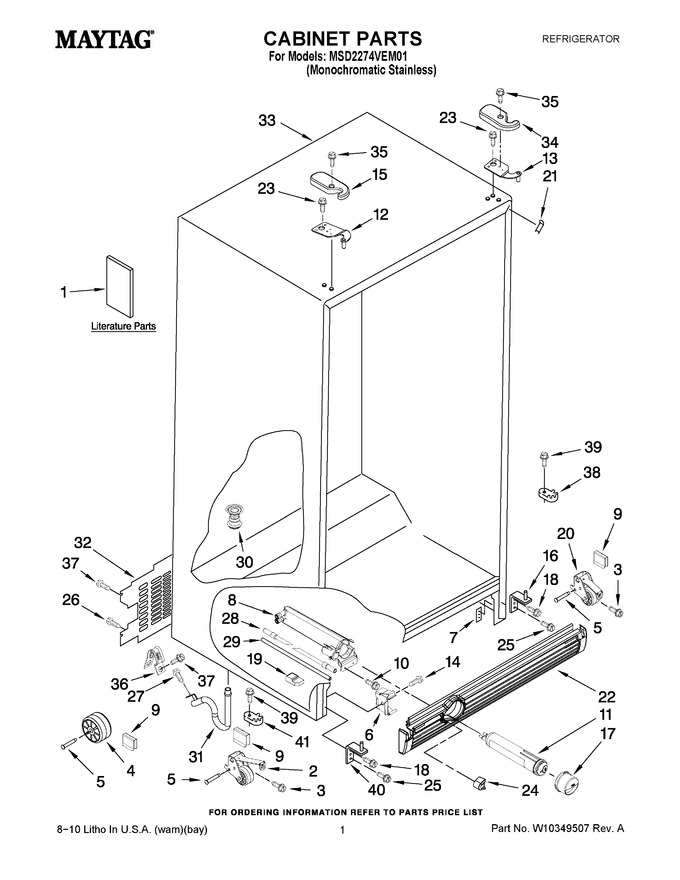

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10214488		Use & Care Guide		Appelez-nous	-
1	W10235230		Service & Wiring Sheet		Appelez-nous	-
1	628370		Modular Icemaker Service Sheet		Appelez-nous	-
1	W10180071		Energy Label		Appelez-nous	-
2	WPW10304660		Front Roller Left   (Replaces: W10304660)			Immediately	$ 70.38
3	WP489427		Screw   (Replaces: 489427)				$ 7.47
4	WPW10475495		Roller (rear)   (Replaces: 2150304)			Immediately	$ 32.06
5	W11594405		Axle, Roller   (Replaces: 2262072)			Immediately	$ 18.21
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.72
7	WP2304249		Screw Plate (2)   (Replaces: 2304249)				$ 14.23
8	WPW10121138		Housing, Water Filter   (Replaces: W10121138)			Immediately	$ 112.91
9	WP2174706		Clip, Axle   (Replaces: 2174706)				$ 10.98
10	WP489500		Screw (2)   (Replaces: 489500)				$ 7.78
11	EDR3RXD1B		Water Filter   (Replaces: 4396841)			Immediately	$ 49.99
12	W10287685		Hinge, Top (fc)				$ 63.39
13	W10287684		Hinge, Top (rc)				$ 46.69
14	WP489128		Screw   (Replaces: 488500)				$ 10.88
15	W10138584		Hinge Cover Fc				$ 15.17
16	W10289528		Hinge Bottom Fc		Appelez-nous	-
17	WP2260518MG		Cap, Water Filter   (Replaces: 2260502MG)				$ 56.03
18	WP489497		Screw (4)   (Replaces: 3400113)			Immediately	$ 29.09
19	2260519		Block, Housing Support		Appelez-nous	-
20	WPW10304659		Front Roller, Right   (Replaces: W10304659)			Immediately	$ 68.52
21	W10851579		Filler, Wrapper   (Replaces: W10283961)			Immediately	$ 7.19
22	W10202905		Grille				$ 58.00
23	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
24	2260503MG		Button, Water Filter				$ 27.01
25	W10856122		Screw (2)   (Replaces: 3400103)				$ 7.76
26	WP488488		Screw   (Replaces: 489290)				$ 7.68
27	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
28	W10281289		Tube, Filter Inlet				$ 57.80
29	WPW10350006		Tube, Filter Outlet   (Replaces: 2255012)				$ 115.54
30	W11566763		Drain Fitting   (Replaces: 2304888)			Immediately	$ 50.90
31	W11512417		Extension Tube   (Replaces: W10153550)				$ 34.79
32	WP2188756		Cover, Unit   (Replaces: 2188734)				$ 141.67
33	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
34	W10138579		Hinge Cover				$ 35.68
35	WP8281227		Screw   (Replaces: 8281227)				$ 10.44
36	549193		Clamp, Service Cord				$ 13.39
37	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
38	WPW10329686		Door Closer, Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 5.43
39	WP489483		Screw (2)   (Replaces: W10029680)				$ 10.87
40	W10289530		Hinge Bottom Fc		Appelez-nous	-
41	W11778262		Door Closer Lower Cam Fc   (Replaces: 2223751)				$ 11.08

    View Diagram in Separate Window       Print Part List
