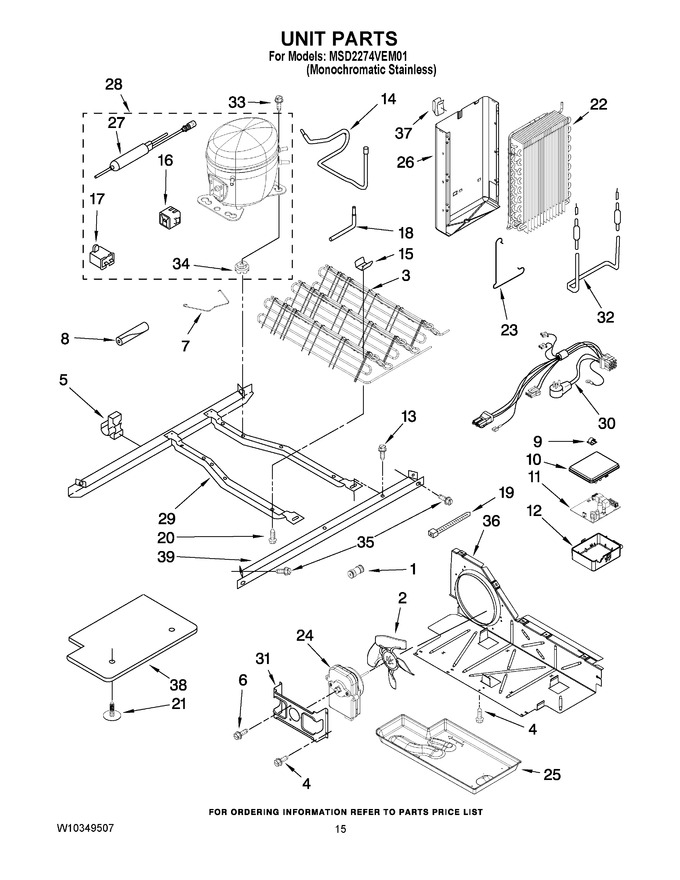

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10334458 | Connector (Replaces: W10271540) |
|
$ 22.67 | |||||
| 2 | W10156818 | Fan, Blade (Replaces: 12825802) |
|
Immediately | $ 62.11 | ||||
| 3 | W10211163 | Condenser Assembly |
|
$ 282.86 | |||||
| 4 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 5 | W10812039 | Clip, Wire (Replaces: 2326941) |
|
$ 11.12 | |||||
| 6 | WP8533993 | Screw (Replaces: 8533993) |
|
$ 11.21 | |||||
| 7 | W11661170 | Clip, Retaining (Replaces: W10174384) |
|
Immediately | $ 11.87 | ||||
| 8 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 21.32 | ||||
| 9 | WP1115374 | Clip, Wiring (Replaces: 1115374) |
|
$ 8.14 | |||||
| 10 | 2255624 | Box Cover |
|
- | |||||
| 11 | W10259858 | Elec. Control |
|
$ 303.74 | |||||
| 12 | 2326982 | Control Box |
|
$ 90.37 | |||||
| 13 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 14 | W10210787 | Tube Suction |
|
$ 247.24 | |||||
| 15 | W10683556 | Clip, Condenser(2) (Replaces: 2311725) |
|
$ 19.38 | |||||
| 16 | WPW10189190 | Start Device, Combination (start Relay And Overload) For (service) (Replaces: W10197427) |
|
Immediately | $ 131.29 | ||||
| 16 | WPW10189190 | Start Device, Combination (start Relay And Overload) For (production) (Replaces: W10189190) |
|
Immediately | $ 131.29 | ||||
| 17 | WPW10662129 | Capacitor (service) (Replaces: 2264017) |
|
Immediately | $ 58.86 | ||||
| 18 | W10274306 | Process Tube (Replaces: W10171238) |
|
$ 14.40 | |||||
| 19 | WPW10339879 | Strap (Replaces: 2263990) |
|
$ 8.30 | |||||
| 20 | W11544659 | Screw (Replaces: 8281232) |
|
$ 14.35 | |||||
| 21 | 489396 | Clip |
|
$ 11.26 | |||||
| 22 | WP2188822 | Evaporator (Replaces: 2188822) |
|
Immediately | $ 356.84 | ||||
| 23 | 2161324 | Clamp |
|
- | |||||
| 24 | WP2188874 | Fan, Motor (Replaces: 2188874) |
|
Immediately | $ 113.96 | ||||
| 25 | WPW10614158 | Tray, Evaporator (Replaces: 1105523) |
|
Immediately | $ 113.18 | ||||
| 26 | WPW10194474 | Heat Shield (Replaces: W10194474) |
|
$ 125.51 | |||||
| 27 | WPW10143759 | Drier (production) (Replaces: W10177049) |
|
Immediately | $ 30.78 | ||||
| 27 | WPW10143759 | Drier (service) (Replaces: W10143759) |
|
Immediately | $ 30.78 | ||||
| 28 | W10233961 | Compressor (includes Items 16, 17, 27, & 34) (also Order 876765 Tube Kit) (Replaces: W10189229) |
|
$ 643.40 | |||||
| 29 | 2304903 | Unit Mounting Frame |
|
$ 244.68 | |||||
| 30 | 2310425 | Unit, Harness (includes Power Cord) |
|
$ 230.95 | |||||
| 31 | WP2181929 | Fan, Motor Bracket (Replaces: 2181929) |
|
$ 12.93 | |||||
| 32 | WP2323197 | Heater, Defrost (Replaces: 2188174) |
|
Immediately | $ 123.25 | ||||
| 33 | W11661574 | Screw (Replaces: 489473) |
|
$ 14.29 | |||||
| 34 | W11661108 | Grommet (4) (production) (Replaces: 2183042) |
|
$ 15.21 | |||||
| 34 | 876811 | Grommet (4) (service) (Replaces: 1100826) |
|
$ 7.79 | |||||
| 35 | WP489427 | Screw (5) (Replaces: 489427) |
|
$ 7.84 | |||||
| 36 | W10332806 | Air Baffle |
|
$ 102.82 | |||||
| 37 | 2155547 | Clip, Heat Shield |
|
- | |||||
| 38 | W11115203 | Unit Cover, Bottom (Replaces: 2304898) |
|
$ 543.81 | |||||
| 39 | WPW10196323 | Unit Mounting Rail (Replaces: W10196323) |
|
$ 124.89 | |||||
| NI | N/P | Refrigerant Charge (5.0 Oz. (r-134a)) |
|
- | |||||
| NI | SF5538 | Valve, Access(3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 876764 | Valve, Access 3/16``) |
|
Immediately | $ 95.92 | ||||
| NI | 978028 | Valve, Access (1/2``) |
|
- | |||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| NI | WP978025 | Valve Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| NI | 978029 | Valve, Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 137.25 |
