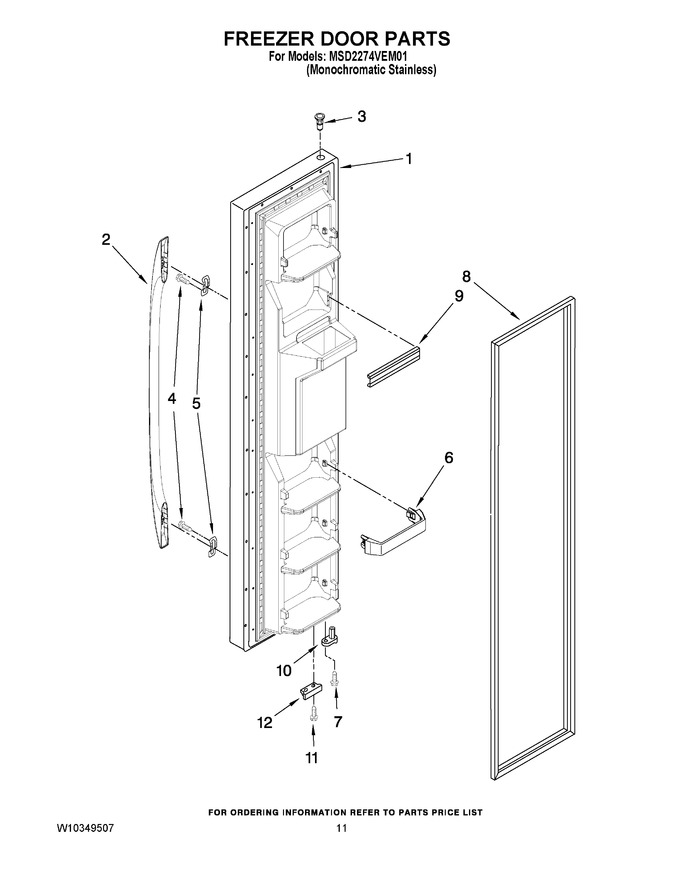

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10272036 | Freezer Door (includes Item 8 And Dispenser Front Parts) (mono Stainless) |
|
- | |||||
| 2 | WPW10170739 | Handle (Replaces: W10170739) |
|
$ 346.58 | |||||
| 3 | WP2182181 | Thimble-top (Replaces: 2308091) |
|
$ 7.76 | |||||
| 4 | WPW10288153 | Screw (Replaces: W10129563) |
|
Immediately | $ 8.69 | ||||
| 5 | WP2255411 | Clip (Replaces: 2255411) |
|
$ 34.81 | |||||
| 6 | WP2309717 | Trivet (Replaces: 2309717) |
|
$ 55.85 | |||||
| 7 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.82 | |||||
| 8 | W10136733 | Door Gasket Magnetic (Replaces: 2327162) |
|
$ 341.89 | |||||
| 9 | WPW10307490 | Trim, Door Shelf (Replaces: W10307489) |
|
Immediately | $ 23.11 | ||||
| 10 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 11 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.87 | |||||
| 12 | 2323534B | Bracket, Door Stop |
|
- |
