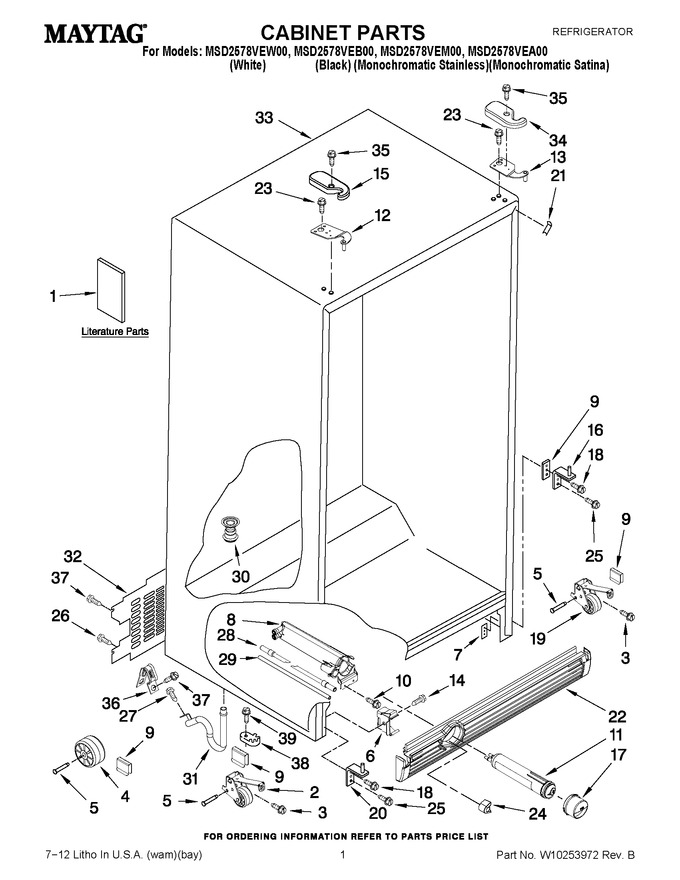

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10158696		Energy Label		Appelez-nous	-
1	W10216897		Use & Care Guide		Appelez-nous	-
1	628370		Modular Icemaker Service Sheet		Appelez-nous	-
1	W10181508		Service & Wiring Sheet		Appelez-nous	-
2	WPW10304660		Front Roller, Left   (Replaces: W10304660)			Immediately	$ 70.38
3	WP489427		Screw   (Replaces: 489427)				$ 7.47
4	WPW10475495		Roller, Rear   (Replaces: 2150304)			Immediately	$ 32.06
5	W11594405		Axle, Roller   (Replaces: 2262072)			Immediately	$ 18.21
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.72
7	WP2304249		Screw Plate (2)   (Replaces: 2304249)				$ 14.23
8	WPW10121138		Housing, Water Filter   (Replaces: W10121138)			Immediately	$ 112.91
9	WP2174706		Clip, Axle   (Replaces: 2174706)				$ 10.98
10	WP489500		Screw (2)   (Replaces: 489500)				$ 7.78
11	EDR3RXD1B		Water Filter   (Replaces: 4396841)			Immediately	$ 49.99
12	W10287685		Hinge Top Fc				$ 63.39
13	W10287684		Hinge, Top Rc				$ 46.69
14	WP489128		Screw   (Replaces: 488500)				$ 10.88
15	W10138582		Hinge Cover (black)				$ 34.30
15	W10138584		Hinge Cover (apollo Grey)				$ 15.17
15	W10138581		Hinge Cover (white)		Appelez-nous	-
16	W10400808		Bottom Hinge (rc)		Appelez-nous	-
17	WP2260518W		Cap, Water Filter (white)   (Replaces: 2260502W)			Immediately	$ 31.90
17	WP2260518B		Cap, Water Filter (black)   (Replaces: 2260502B)			Immediately	$ 28.26
17	WP2260518MG		Cap, Water Filter (midnight Grey)   (Replaces: 2260502MG)				$ 56.03
18	WP489497		Screw (4)   (Replaces: 3400113)			Immediately	$ 29.09
19	WPW10304659		Front Roller, Right   (Replaces: W10304659)			Immediately	$ 68.52
20	W10289530		Hinge Bottom Fc		Appelez-nous	-
21	W11252732		Filler, Wrapper (black)   (Replaces: W10283960)				$ 12.45
21	W10851579		Filler, Wrapper (apollo Grey)   (Replaces: W10283961)			Immediately	$ 7.19
21	WPW10283959		Filler, Wrapper (white)   (Replaces: W10283959)				$ 7.82
22	WPW10184890		Grille (midnight Grey)   (Replaces: W10184890)				$ 158.70
22	WPW10184888		Grille (black)   (Replaces: W10184888)				$ 209.51
22	W10184886		Grille (white)				$ 67.61
23	489797		Screw		Appelez-nous	-
24	2260503W		Button, Water Filter (white)			Immediately	$ 34.16
24	WP2260503B		Button, Water Filter (black)   (Replaces: 2260503B)				$ 72.78
24	2260503MG		Button, Water Filter (midnight Grey)				$ 27.01
25	W10856122		Screw (2)   (Replaces: 3400103)				$ 7.76
26	WP488488		Screw   (Replaces: 489290)				$ 7.68
27	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
28	W10281289		Tube, Filter Inlet				$ 57.80
29	WPW10350006		Tube, Filter Outlet   (Replaces: 2255012)				$ 115.54
30	W11566763		Drain Fitting   (Replaces: 2304888)			Immediately	$ 50.90
31	W11512417		Extension Tube   (Replaces: W10153550)				$ 34.79
32	WP2188755		Cover, Unit   (Replaces: 2188735)				$ 135.91
33	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
34	W10138577		Hinge Cover (black)				$ 34.45
34	W10138579		Hinge Cover (apollo Grey)				$ 35.68
34	W10138576		Hinge Cover (white)		Appelez-nous	-
35	WP489128		Screw   (Replaces: 8281149)				$ 10.88
36	549193		Clamp, Service Cord				$ 13.39
37	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
38	W11778262		Door Closer, Lower Cam   (Replaces: 2223751)				$ 11.08
39	WP489483		Screw   (Replaces: W10029680)				$ 10.87

    View Diagram in Separate Window       Print Part List
