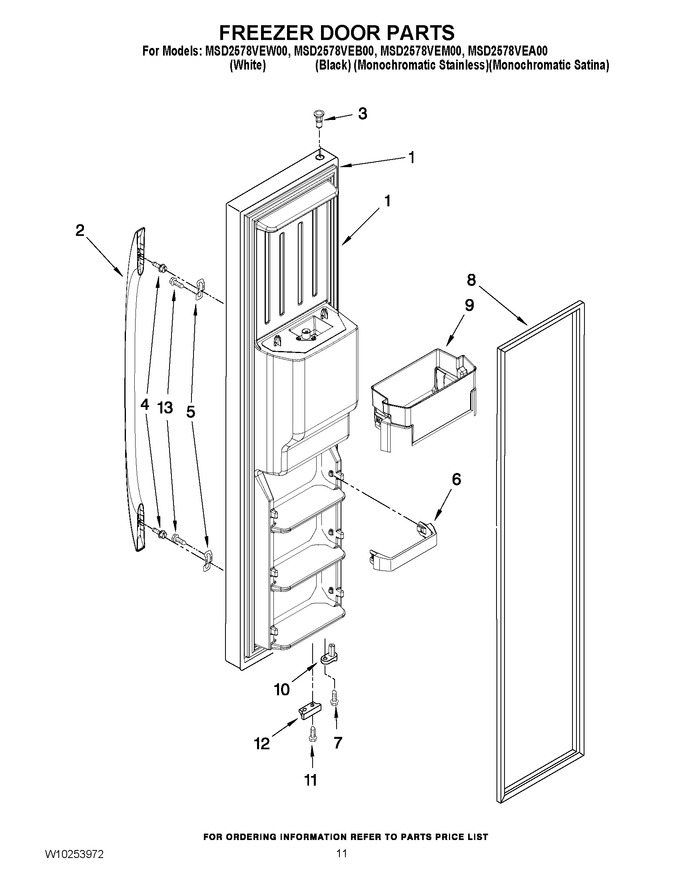

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10202787		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	W10216891		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10216893		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless)		Appelez-nous	-
1	W10216892		Freezer Door (includes Item 8 And Dispenser Front Parts) (satina)		Appelez-nous	-
2	W10296254		Handle (white)		Appelez-nous	-
2	WPW10328861		Handle (stainless & Satina)   (Replaces: W10328861)				$ 189.27
2	W10296255		Handle (black)		Appelez-nous	-
3	WP2182181		Thimble-top   (Replaces: 2200087)				$ 8.15
4	W10324317		Screw		Appelez-nous	-
5	WP2255411		Clip   (Replaces: 2255411)				$ 36.55
6	WP2309718		Trivet   (Replaces: 2309718)				$ 61.49
7	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
8	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309532)				$ 325.70
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2309533)				$ 332.49
8	W10136735		Door Gasket, Magnetic (apollo Grey)   (Replaces: 2327164)				$ 254.84
9	W10142358		Bin, Tilt-out		Appelez-nous	-
10	2323535		Door Closer, Upper Cam				$ 33.97
11	WP489483		Screw   (Replaces: 489420)				$ 11.41
12	2323534B		Bracket, Door Stop (black)		Appelez-nous	-
12	2323534		Bracket, Door Stop (chrome)		Appelez-nous	-
13	WPW10288153		Screw   (Replaces: W10288153)			Immediately	$ 9.65

    View Diagram in Separate Window       Print Part List
