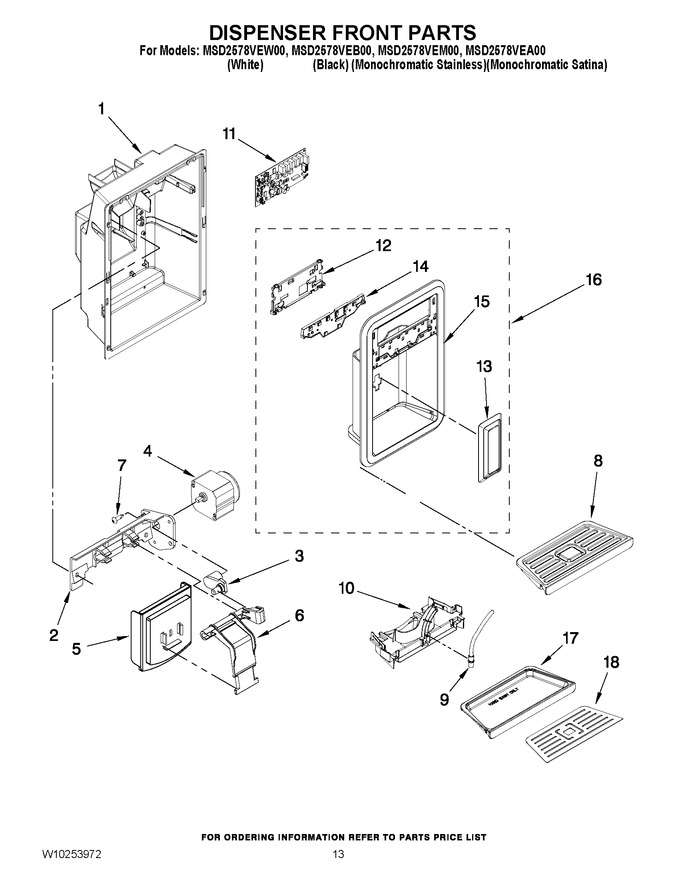

08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Air Flow Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	WP2305202		Bracket, Motor   (Replaces: 2305202)				$ 96.76
3	WP2305242		Connector, Door Bracket   (Replaces: 2305242)			Immediately	$ 96.97
4	W10174787		Motor, Ice Door				$ 76.38
5	2328019		Door, Ice				$ 17.09
6	2328018		Support, Ice Door				$ 50.64
7	WP4449745		Screw   (Replaces: 4449745)				$ 7.49
8	W10192687		Tray Assembly (black)				$ 75.15
8	W10192669		Tray Assembly (white)				$ 39.47
8	W10192689		Tray Assembly (satina)				$ 118.32
9	W10176589		Water Tube		Appelez-nous	-
10	2328015		Separator Assembly		Appelez-nous	-
11	WPW10144587		Electronic Control (core)   (Replaces: W10144587)				$ 289.18
12	W10144040		Cover, Electronic Control				$ 90.30
13	W10176454		Pad (satina)		Appelez-nous	-
13	W10144511		Pad (stainless)				$ 123.91
13	W10176455		Pad (black)				$ 131.85
13	W10176456		Pad (white)				$ 131.85
14	W10182888		Silicon Curtain				$ 16.34
15	N/P		Front Cover Housing (not Available Order No.16)		Appelez-nous	-
16	W10179044		Front Cover Assembly (includes Items 12, 13, 14, 15, & 17) (white)		Appelez-nous	-
16	W10179042		Front Cover Assembly (includes Items 12, 13, 14, 15, & 17) (satina)				$ 371.41
16	W10179039		Front Cover Assembly (includes Items 12, 13, 14, 15, & 17) (brushed Amalgam)		Appelez-nous	-
16	W10179043		Front Cover Assembly (includes Items 12, 13, 14, 15, & 17) (black)				$ 317.56
17	W10177382		Drip Tray, Stainless				$ 63.18
18	W10144018		Grill, Stainless		Appelez-nous	-
