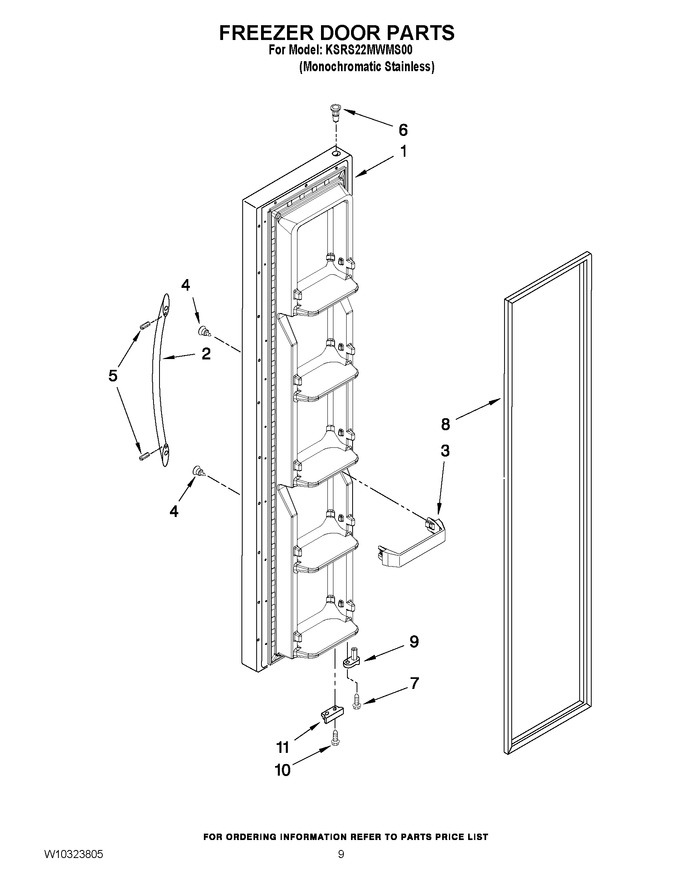

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10286470 | Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless) |
|
- | |||||
| 2 | 2319727S | Handle |
|
$ 133.96 | |||||
| 3 | WP2156021 | Trivet, Shelf (Replaces: 2156021) |
|
$ 66.43 | |||||
| 4 | WPW10170540 | Screw (Replaces: W10170540) |
|
Immediately | $ 8.51 | ||||
| 5 | W11366418 | Set Screw (Replaces: W10010140) |
|
Immediately | $ 15.79 | ||||
| 6 | WP2182181 | Thimble-top (Replaces: 2308091) |
|
$ 8.15 | |||||
| 7 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 | |||||
| 8 | W10136733 | Door Gasket, (apollo Grey Magnetic) (Replaces: 2327162) |
|
$ 358.98 | |||||
| 9 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 10 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 11 | W10185566 | Bracket, Door Stop |
|
- |
