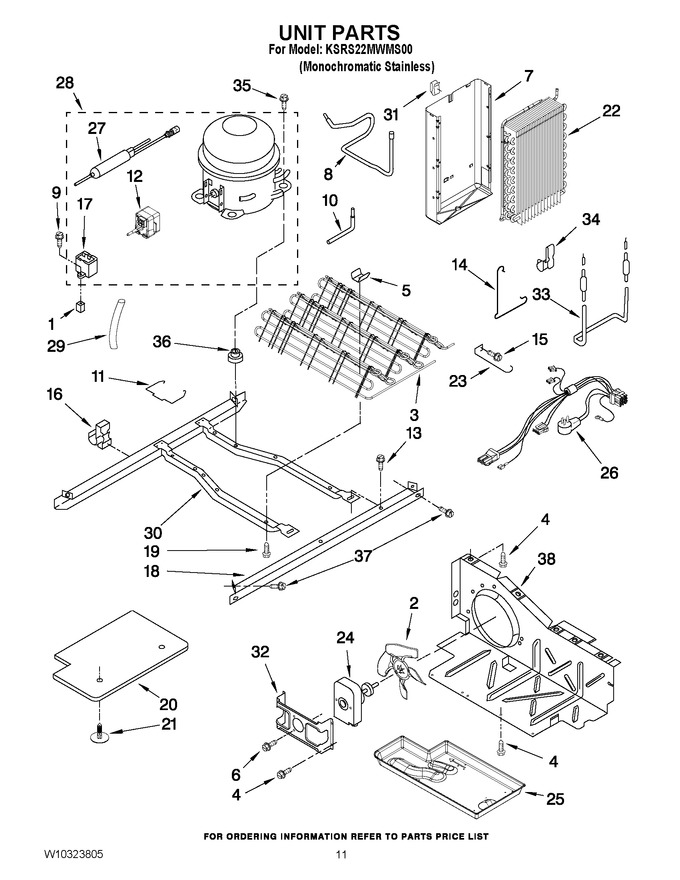

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 509812 | Grommet, Screw |
|
- | |||||
| 2 | W10156818 | Fan, Blade (Replaces: 12825802) |
|
Immediately | $ 62.11 | ||||
| 3 | 2324712 | Condenser Assembly (Replaces: W10222349) |
|
$ 323.45 | |||||
| 4 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 5 | 2208280 | Clip, Wire |
|
- | |||||
| 6 | WP8533993 | Screw (Replaces: 8533993) |
|
$ 11.21 | |||||
| 7 | WPW10194474 | Heat Shield And Drain Pan (Replaces: W10194474) |
|
$ 125.51 | |||||
| 8 | 2220642 | Tube-suction |
|
$ 232.67 | |||||
| 9 | W11693756 | Screw (Replaces: 488687) |
|
Immediately | $ 14.76 | ||||
| 10 | 2325479 | Process Tube |
|
- | |||||
| 11 | 2212996 | Bale Strap (Replaces: 2255113) |
|
$ 12.72 | |||||
| 12 | WP2188831 | Start Device Combination Relay & Overload (service) (Replaces: 2188831) |
|
$ 186.35 | |||||
| 13 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 14 | 2161324 | Clip, Defrost Heater |
|
- | |||||
| 15 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 16 | 2208280 | Clip, Wire & Tube |
|
- | |||||
| 17 | WP65889-4 | Capacitor (production) (Replaces: 2252799) |
|
Immediately | $ 61.14 | ||||
| 17 | WP65889-4 | Capacitor (service) (Replaces: 2255130) |
|
Immediately | $ 61.14 | ||||
| 18 | W10207512 | Unit Mounting Rail |
|
- | |||||
| 19 | W11544659 | Screw (Replaces: 8281232) |
|
$ 14.35 | |||||
| 20 | W11115203 | Unit Cover, Bottom (Replaces: 2304898) |
|
$ 543.81 | |||||
| 21 | 489396 | Clip |
|
$ 11.26 | |||||
| 22 | WP2188822 | Evaporator (Replaces: 2188822) |
|
Immediately | $ 356.84 | ||||
| 23 | 1105612 | Guard, Fan |
|
$ 42.61 | |||||
| 24 | WP2188874 | Motor, Fan (Replaces: 2188874) |
|
Immediately | $ 113.96 | ||||
| 25 | WPW10614158 | Tray, Evaporator (Replaces: 1105523) |
|
Immediately | $ 113.18 | ||||
| 26 | WP2187778 | Harness, Unit (Replaces: 2187778) |
|
$ 93.20 | |||||
| 27 | WPW10143759 | Drier (production) (Replaces: W10177049) |
|
Immediately | $ 30.78 | ||||
| 27 | WPW10143759 | Drier (service) (Replaces: W10143759) |
|
Immediately | $ 30.78 | ||||
| 28 | W10355489 | Compressor (includes Items 12, 17, 27, 36) (also Order 876765 Tube Kit) (Replaces: W10144769) |
|
$ 678.50 | |||||
| 29 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 21.32 | ||||
| 30 | 2304903 | Unit Mounting Frame |
|
$ 244.68 | |||||
| 31 | 2155547 | Clip, Heat |
|
- | |||||
| 32 | WP2181929 | Bracket, Fan Motor (Replaces: 2181929) |
|
$ 12.93 | |||||
| 33 | WP2323197 | Heater, Defrost (Replaces: 2188174) |
|
Immediately | $ 123.25 | ||||
| 34 | W11623163 | Clip (Replaces: 2304287) |
|
- | |||||
| 35 | 876811 | Screw (Replaces: 489373) |
|
$ 7.79 | |||||
| 36 | 876811 | Grommet (4) (production) (Replaces: 1100826) |
|
$ 7.79 | |||||
| 36 | W11661108 | Grommet (4) (service) (Replaces: 2183042) |
|
$ 15.21 | |||||
| 37 | 489340 | Screw |
|
- | |||||
| 38 | W10332806 | Air, Baffle |
|
$ 102.82 | |||||
| NI | 978028 | Valve, Access (1/2``) |
|
- | |||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| NI | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | N/P | Refrigerant Charge (5.0 Oz. (r-134a)) |
|
- | |||||
| NI | 978029 | Valve, Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| NI | 876764 | Valve, Access (3/16``) |
|
Immediately | $ 95.92 |
