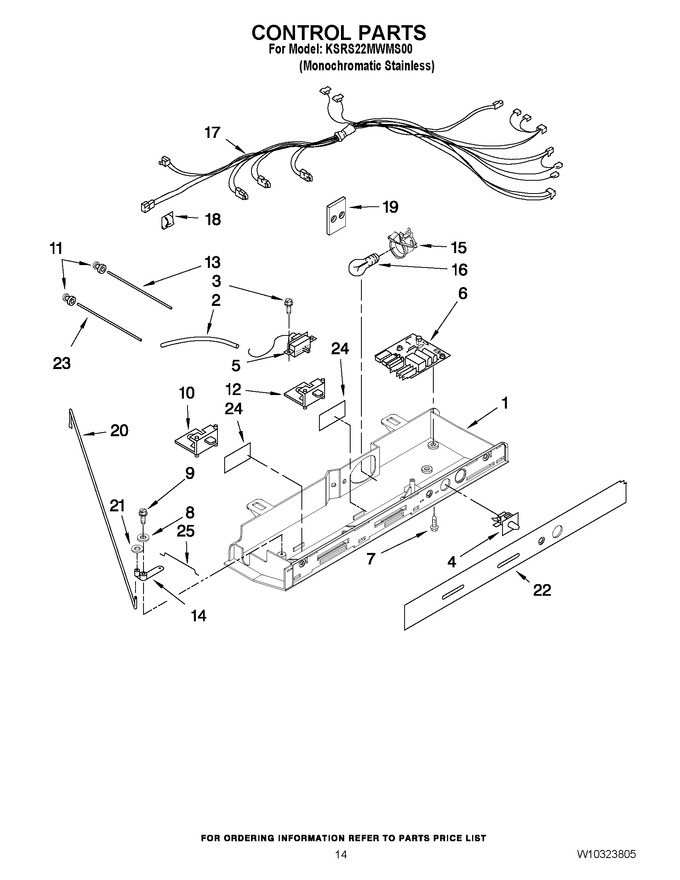

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2181738 | Control Box |
|
- | |||||
| 2 | WP2196003 | Tube Barrier, Thermostat (Replaces: 2196001) |
|
$ 7.95 | |||||
| 3 | 2006254 | Screw (Replaces: 489214) |
|
$ 13.13 | |||||
| 4 | WP2149705 | Light Switch (Replaces: 2149705) |
|
Immediately | $ 40.40 | ||||
| 5 | WP2315562 | Thermostat (Replaces: 2315562) |
|
Immediately | $ 106.18 | ||||
| 6 | 4388932 | Electronic Control (Replaces: 2303824) |
|
Immediately | $ 267.09 | ||||
| 7 | 489392 | Screw (Replaces: 489398) |
|
$ 13.35 | |||||
| 8 | 489203 | Spring Washer |
|
- | |||||
| 9 | 627068 | Screw |
|
$ 12.12 | |||||
| 10 | 2181741 | Slide, Air Control |
|
$ 90.49 | |||||
| 11 | 2172906 | Grommet, Light Bar |
|
- | |||||
| 12 | 2161466 | Slide, Thermostat |
|
$ 21.22 | |||||
| 13 | 2179920 | Light Bar (rc) |
|
$ 37.08 | |||||
| 14 | 2161306 | Pivot Arm |
|
$ 9.65 | |||||
| 15 | 4387478 | Light Socket (Replaces: 2162085) |
|
Immediately | $ 110.16 | ||||
| 16 | W11679940 | Light Bulb (Replaces: W10311505) |
|
Immediately | $ 11.30 | ||||
| 17 | 2310533 | Control Box Harness |
|
$ 314.10 | |||||
| 18 | WP1115374 | Clip, Wiring (Replaces: 1115374) |
|
$ 7.75 | |||||
| 19 | 2172931 | Heat Shield |
|
$ 70.38 | |||||
| 20 | 2161308 | Connecting Rod |
|
$ 172.11 | |||||
| 21 | 489391 | Fastener, Push-on |
|
$ 7.52 | |||||
| 22 | W10242641 | Front Cover, Control Box |
|
- | |||||
| 23 | 2179921 | Light Bar (fc) |
|
- | |||||
| 24 | 2175513 | Window |
|
- | |||||
| 25 | 2161307 | Connecting Rod (short) |
|
- |
