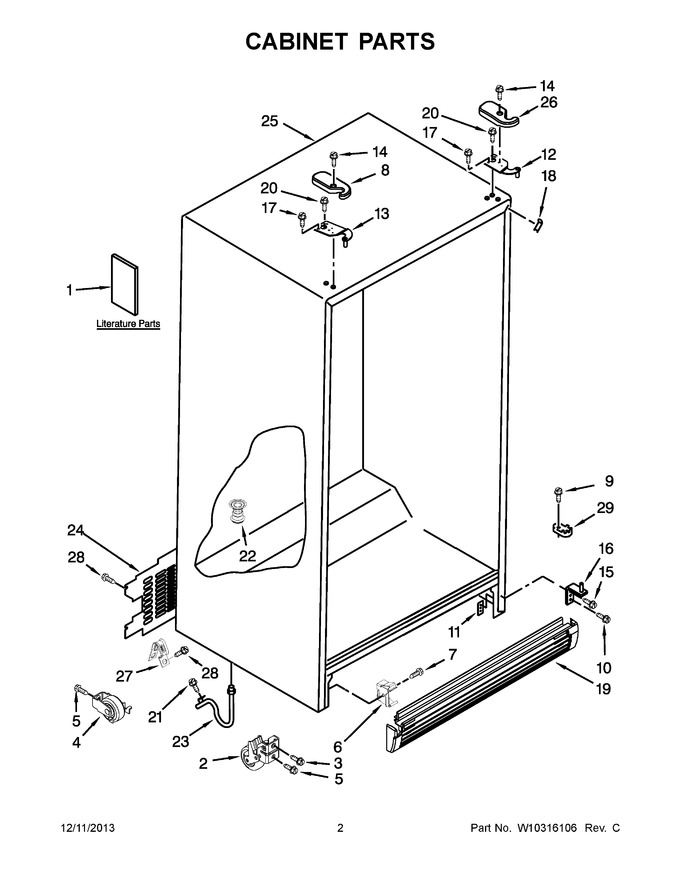

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10217561 | Use And Care Guide |
|
- | |||||
| 1 | W10142192 | Service And Wiring Sheet |
|
- | |||||
| 1 | 2195676 | Energy Guide |
|
- | |||||
| 2 | 2174748 | Roller, Front |
|
- | |||||
| 3 | W10850698 | Screw (Replaces: 3400517) |
|
$ 14.42 | |||||
| 4 | WPW10250570 | Roller, Rear (Replaces: W10250570) |
|
$ 42.18 | |||||
| 5 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 8.11 | ||||
| 7 | WP489128 | Screw (Replaces: 488500) |
|
$ 11.40 | |||||
| 8 | W10138581 | Cover, Hinge (freezer) (white) |
|
- | |||||
| 8 | W10138584 | Cover, Hinge (freezer) (grey) |
|
$ 15.17 | |||||
| 9 | WP489483 | Screw (Replaces: 489483) |
|
$ 11.41 | |||||
| 10 | W10856122 | Screw (Replaces: 3400103) |
|
$ 8.27 | |||||
| 11 | WP2304249 | Plate, Screw (Replaces: 2304249) |
|
$ 14.94 | |||||
| 12 | WP2203771 | Hinge, Top Right (Replaces: 2203771) |
|
$ 103.13 | |||||
| 13 | WP2203770 | Hinge, Top Left (Replaces: 2203770) |
|
$ 100.30 | |||||
| 14 | WP8281227 | Screw (Replaces: 8281227) |
|
$ 10.96 | |||||
| 15 | WP489497 | Screw (Replaces: 3400113) |
|
Immediately | $ 29.09 | ||||
| 16 | W10251408 | Hinge Bottom |
|
$ 59.74 | |||||
| 17 | 3400858 | Screw |
|
- | |||||
| 18 | W10851579 | Filler, Corner (grey) (Replaces: W10283961) |
|
Immediately | $ 7.55 | ||||
| 18 | WPW10283959 | Filler, Corner (white) (Replaces: W10283959) |
|
$ 8.21 | |||||
| 19 | WPW10283946 | Grille (white) (Replaces: 2198470W) |
|
$ 150.70 | |||||
| 19 | 2198470AP | Grille (grey) |
|
- | |||||
| 20 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 21 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 22 | W11566763 | Fitting, Drain (Replaces: 2304888) |
|
Immediately | $ 53.45 | ||||
| 23 | W11512417 | Extension, Drain Fitting (Replaces: W10153550) |
|
$ 36.53 | |||||
| 24 | 2214575 | Cover, Unit (Replaces: 2214574) |
|
- | |||||
| 25 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 26 | W10138576 | Cover, Hinge (refrigerator) (white) |
|
- | |||||
| 26 | W10138579 | Cover, Hinge (refrigerator) (grey) |
|
$ 35.68 | |||||
| 27 | 489348 | Clamp, Tube |
|
- | |||||
| 28 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 8.05 | |||||
| 29 | WPW10329686 | Closer, Door (Replaces: 2155311) |
|
Immediately | $ 5.90 |
