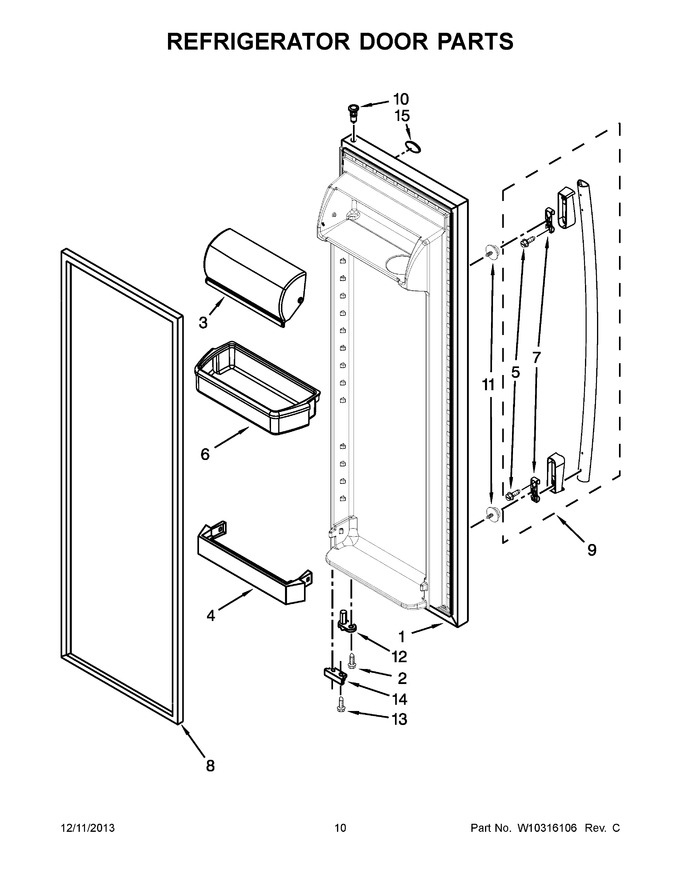

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2263686W		Door, Refrigerator (includes Item No.8) (white)		Appelez-nous	-
1	W10201112		Door, Refrigerator (includes Item No.8) (grey)		Appelez-nous	-
2	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
3	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 89.42
4	WP2309941		Trivet   (Replaces: 2309941)			Immediately	$ 76.32
5	W10267047		Screw   (Replaces: W10201588)				$ 13.47
6	WPW10321304		Bin, Door   (Replaces: 2304235)			Immediately	$ 44.95
7	WP2255411		Clip, Handle Mount   (Replaces: 2255411)				$ 36.55
8	2159075		Gasket, Door (beige)   (Replaces: 2309528)			Immediately	$ 333.00
8	WPW10136734		Gasket, Door (grey)   (Replaces: 2327163)				$ 335.39
9	WPW10257120		Handle (grey)   (Replaces: W10257120)				$ 59.70
9	W10210942A		Handle (white)   (Replaces: W10210942)				$ 129.53
10	WP2182181		Thimble-top   (Replaces: 2308091)				$ 8.15
11	WPW10288153		Screw   (Replaces: W10129563)			Immediately	$ 9.65
12	WP2182179		Thimble, Cam   (Replaces: 2182178)			Immediately	$ 7.20
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	W10185570		Bracket, Door Stop (silver)				$ 11.59
14	W10185571		Bracket, Door Stop (black)		Appelez-nous	-
15	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 93.18
