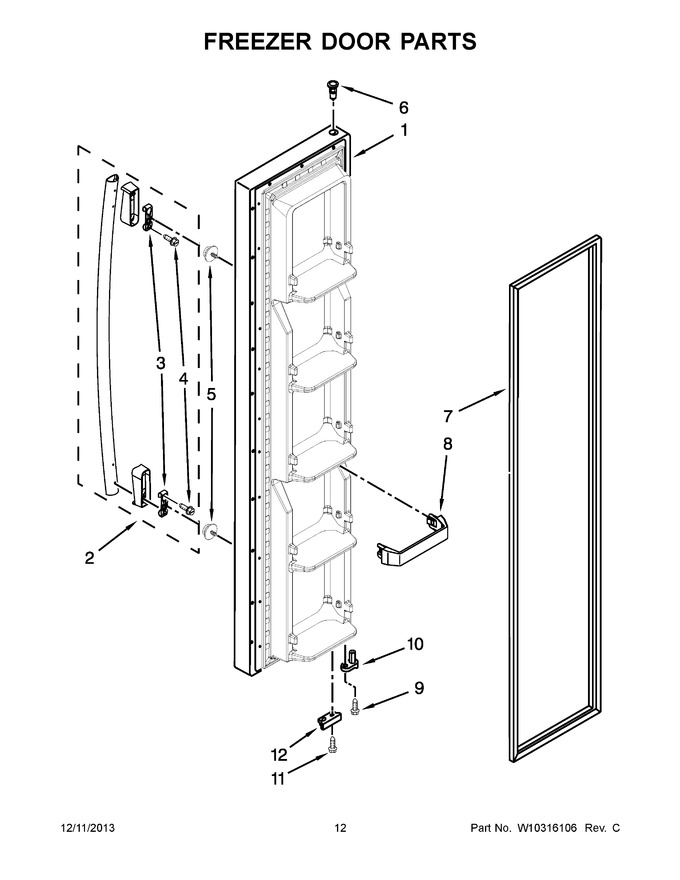

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10269449		Door, Freezer (includes Item No.7) (grey)   (Replaces: W10269449)		Appelez-nous	-
1	W10269731		Door, Freezer (includes Item No.7) (white)		Appelez-nous	-
2	W10210942A		Handle (white)   (Replaces: W10210942)				$ 129.53
2	WPW10257120		Handle (grey)   (Replaces: W10257120)				$ 59.70
3	WP2255411		Clip, Handle Mount   (Replaces: 2255411)				$ 36.55
4	W10267047		Screw   (Replaces: W10201588)				$ 13.47
5	WPW10288153		Screw   (Replaces: W10129563)			Immediately	$ 9.65
6	WP2182181		Thimble-top   (Replaces: 2308091)				$ 8.15
7	2159074		Gasket, Door (beige)   (Replaces: 2309532)				$ 325.70
7	W10136735		Gasket, Door (grey)   (Replaces: 2327164)				$ 315.51
8	WP2309718		Trivet   (Replaces: 2309718)				$ 61.49
9	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
10	WP2182179		Thimble, Cam   (Replaces: 2182178)			Immediately	$ 7.20
11	WP489483		Screw   (Replaces: 489420)				$ 11.41
12	WP2206629B		Bracket, Door Stop (zinc)   (Replaces: 2206629)				$ 42.79
12	W10185567		Bracket, Door Stop (black)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
