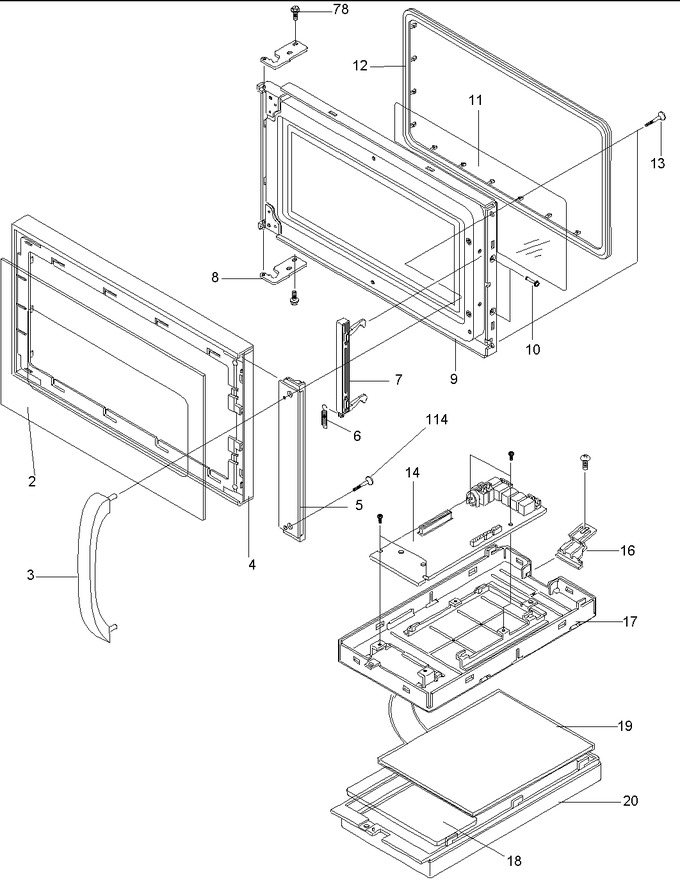

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
	R0713560		Varistor		Appelez-nous	-
2	R0713640		Screen, Door (b)		Appelez-nous	-
3	R0713641		Handle,door Blk		Appelez-nous	-
4	R0713644		Door (a) Black		Appelez-nous	-
5	R0713647		Cover, Door		Appelez-nous	-
6	R0713650		Spring, Key		Appelez-nous	-
7	R0713651		Key,door		Appelez-nous	-
8	R0713652		Hinge,door Upper/lower		Appelez-nous	-
9	R0713654		Assy, Door-e Ct		Appelez-nous	-
10	R0713656		Pin, Door Key		Appelez-nous	-
11	R0713657		Film, Door		Appelez-nous	-
12	R0713658		Door (c)		Appelez-nous	-
13	R0713661		Screw, Tapping		Appelez-nous	-
14	R0713663		Smartboard		Appelez-nous	-
16	R0713665		Hinge, C/box		Appelez-nous	-
17	R0713666		Assy, Brkt Cntl Pnl		Appelez-nous	-
18	R0713667		Window, Display		Appelez-nous	-
19	R0713673		Membrane, Panel		Appelez-nous	-
20	R9900103		Adden, Comb Price Book (see No		Appelez-nous	-
78	R0713576		Bolt, Flange M5x12		Appelez-nous	-
114	R0700061		Screw		Appelez-nous	-
