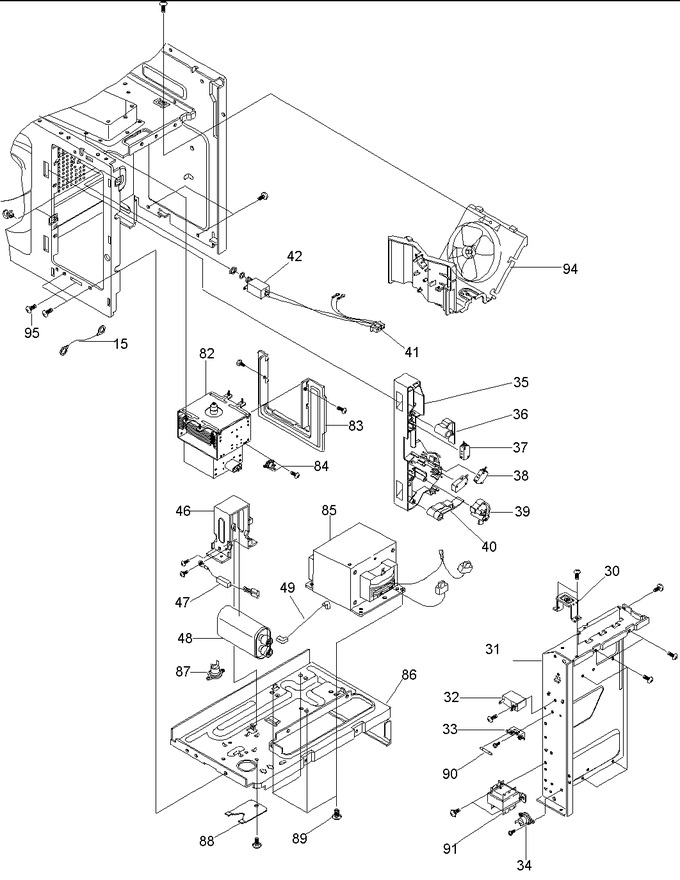

SELECT A DIAGRAM

01 - Cavity Assy


02 - Door And Control Panel


03 - Electronics


04 - Miscellaeous Information


05 - Surface Lights/wiring


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	NA		Base Pan Assy		Appelez-nous	-
30	NA		Base Pan Assy		Appelez-nous	-
31	NA		Base Pan Assy		Appelez-nous	-
32	R0711504		Capacitor Motor		Appelez-nous	-
33	R0713553		Fuse Blk .250 Term, 40 Deg Tab		Appelez-nous	-
34	R0711023		Thermostat		Appelez-nous	-
35	R0713679		Body Latch		Appelez-nous	-
36	R0713680		Lever, Switch (u)		Appelez-nous	-
37	4392027		Switch, Micro   (Replaces: R0713539)				$ 145.33
38	WP56001036		Switch, Primary   (Replaces: R0713540)				$ 78.58
39	R0713681		Cam, Switch		Appelez-nous	-
40	R0713682		Lver, Switch		Appelez-nous	-
41	R0713683		Assy, Wire Harness -b		Appelez-nous	-
46	NA		Base Pan Assy		Appelez-nous	-
47	WP13091701		Rectifier   (Replaces: R0713536)				$ 33.29
48	R0713686		Capacitor		Appelez-nous	-
49	R0713687		Assy, Wire Lead-a		Appelez-nous	-
82	R0713688		Magnetron		Appelez-nous	-
83	NA		Base Pan Assy		Appelez-nous	-
84	R0713689		Thermostat (160/60)		Appelez-nous	-
85	R0713690		H.v. Transformer		Appelez-nous	-
86	NA		Base Pan Assy		Appelez-nous	-
87	R0713691		Thermostat(120/0) 23.8mm		Appelez-nous	-
88	NA		Base Pan Assy		Appelez-nous	-
89	R0713692		Washer, Screw		Appelez-nous	-
90	ABC20		Fuse (20 Amp)   (Replaces: R0713554)			Immediately	$ 11.21
91	R0713693		L.v. Trans (non-sensor)		Appelez-nous	-
94	R0713695		Assy, Fan Motor		Appelez-nous	-
