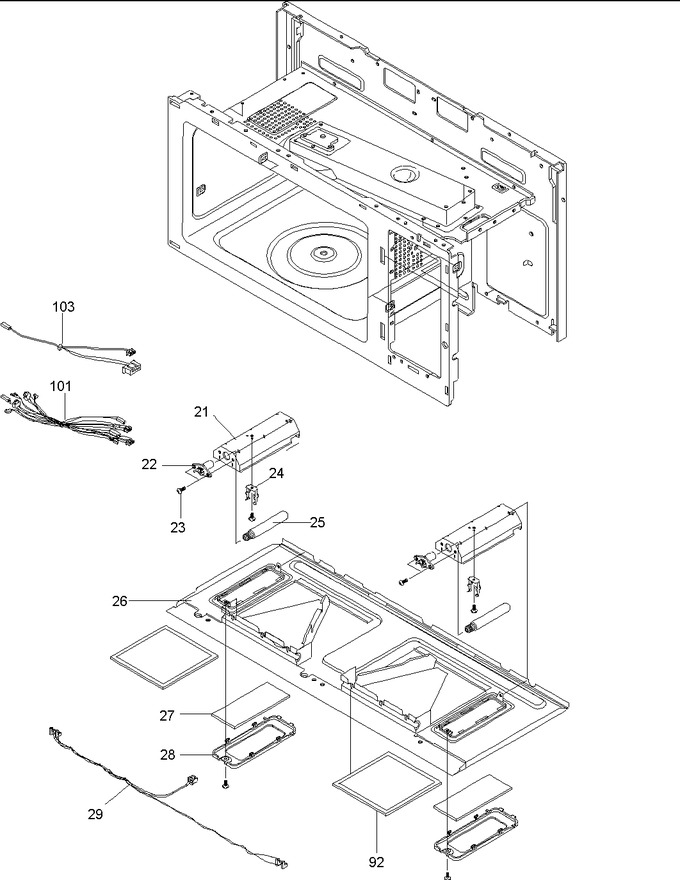

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 21 | R0713723 | Brkt, Bottom Lamp |
|
- | |||||
| 22 | R0713504 | Lamp Socket |
|
- | |||||
| 23 | NA | Base Pan Assy |
|
- | |||||
| 24 | NA | Base Pan Assy |
|
- | |||||
| 25 | 4713-001013 | Bulb 40 Watt (Replaces: R0713676) |
|
Immediately | $ 18.00 | ||||
| 26 | R0713725 | Bottom Base |
|
- | |||||
| 27 | R0713727 | Glass, Cooktop Lamp |
|
- | |||||
| 28 | R0713729 | Cover, Glass Cktp |
|
- | |||||
| 29 | NA | Base Pan Assy |
|
- | |||||
| 92 | R0713730 | Filter, Air |
|
- | |||||
| 101 | R0713732 | Assy, Wire Harness-a |
|
- | |||||
| 103 | NA | Base Pan Assy |
|
- |
