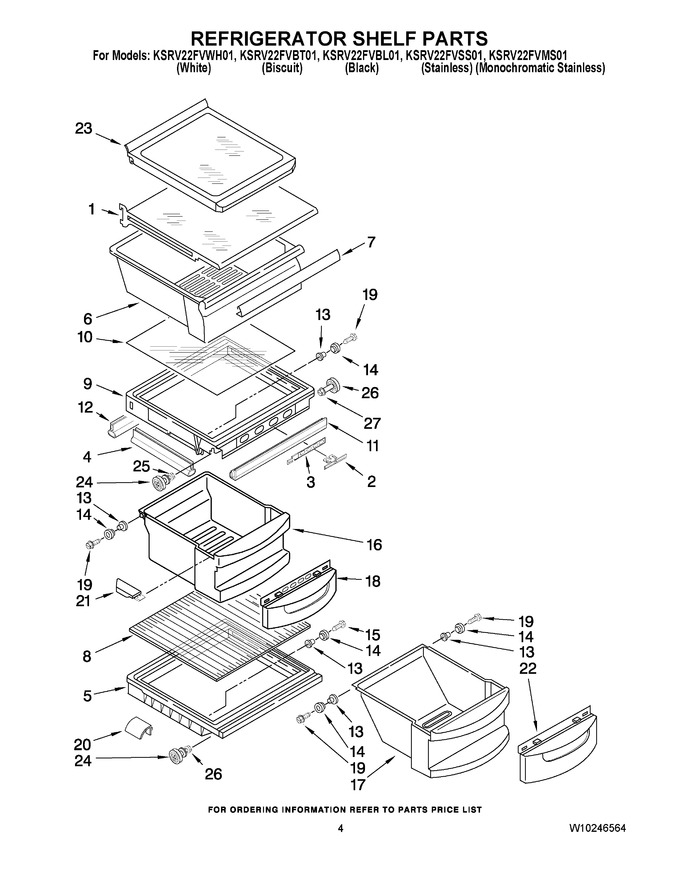

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10276341 | Shelf, Snack Pan (Replaces: 2309560) |
|
$ 217.50 | |||||
| 2 | 2319720 | Button, Humidity |
|
- | |||||
| 3 | 2174252 | Slide, Humidity |
|
$ 15.93 | |||||
| 4 | 2174273 | Gasket, Slide (2) |
|
$ 41.53 | |||||
| 5 | WP2223357 | Cover, Meat Pan (includes Items 13, 14, 15 & 20) (Replaces: 2223357) |
|
$ 272.45 | |||||
| 6 | WP2309517 | Snack Pan (Replaces: 2309518) |
|
$ 133.06 | |||||
| 7 | WP2179243 | Trim, Hamdle (Replaces: 2309519) |
|
$ 109.65 | |||||
| 8 | W10160481 | Glass Cover |
|
$ 87.92 | |||||
| 9 | W10160317 | Cover, Crisper (includes 2, 3, 4, 11, 12, 13, 14 & 19) |
|
$ 98.56 | |||||
| 10 | W10160480 | Glass Cover |
|
- | |||||
| 11 | WP1125528 | Gasket, (front) (Replaces: 2223361) |
|
$ 161.69 | |||||
| 12 | 2223362 | Gasket, (rear) |
|
- | |||||
| 13 | 2174478 | Eyelet, Roller |
|
$ 5.70 | |||||
| 14 | 2188212 | Roller |
|
- | |||||
| 15 | WPW10272364 | Screw (Replaces: 489211) |
|
Immediately | $ 11.36 | ||||
| 16 | W10142714 | Crisper Plan |
|
$ 101.71 | |||||
| 17 | W10149982 | Meat Pan |
|
- | |||||
| 18 | 2174076 | Window, Crisper |
|
$ 80.62 | |||||
| 19 | WP489261 | Screw (Replaces: 489261) |
|
$ 8.33 | |||||
| 20 | 2176095 | Deflector |
|
$ 91.67 | |||||
| 21 | 2223285 | Cap, Crisper Pan (left Side) |
|
$ 22.34 | |||||
| 21 | 2223286 | Cap, Crisper Pan (right Side) |
|
$ 20.18 | |||||
| 22 | WP2174362 | Window, Meat Pan (Replaces: 2174362) |
|
$ 179.76 | |||||
| 23 | 2327180 | Shelf & Roller Assembly |
|
- | |||||
| 24 | W11223328 | Stud Assembly (Replaces: 2196485) |
|
Immediately | $ 14.77 | ||||
| 25 | WP3-24004-109 | Screw (Replaces: 3400894) |
|
$ 9.14 | |||||
| 26 | WP2196483 | Stud Assembly (Replaces: 2196483) |
|
$ 10.87 | |||||
| 27 | WP3400806 | Screw (Replaces: 8281158) |
|
$ 8.10 |
