01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)

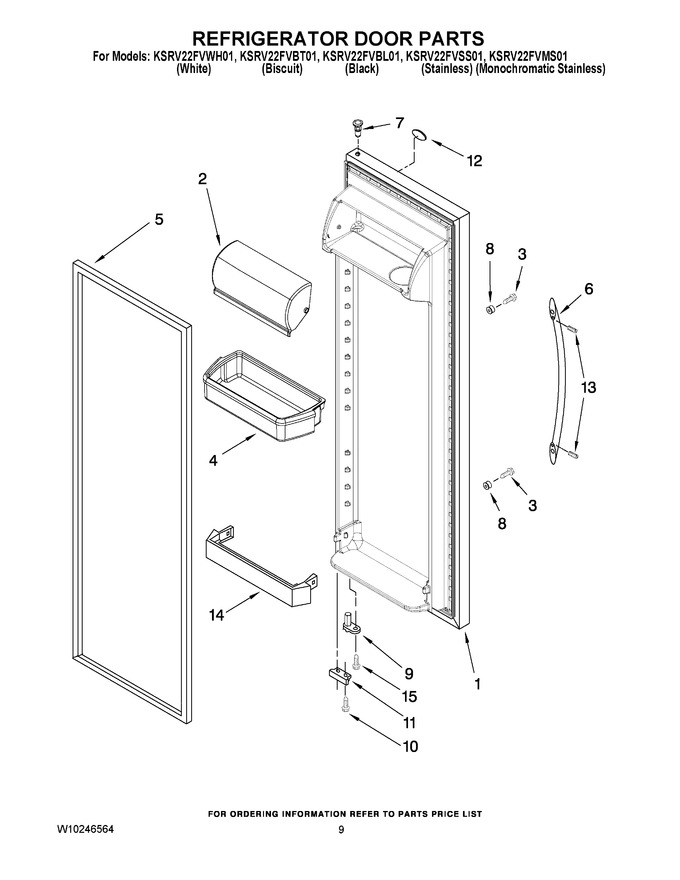

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2325248T		Refrigerator Door (includes Item 5) (biscuit)		Appelez-nous	-
1	L2325248B		Refrigerator Door (includes Item 5) (black)   (Replaces: 2325248B)				$ 1,052.62
1	2323861S		Refrigerator Door (includes Item 5) (stainless)		Appelez-nous	-
1	W10191409		Refrigerator Door (includes Item 5) (monochromatic)		Appelez-nous	-
1	2325248W		Refrigerator Door (includes Item 5) (white)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 85.16
3	WP488163		Screw   (Replaces: 488208)				$ 7.54
4	WPW10321304		Door Bin (3)   (Replaces: 2304235)			Immediately	$ 44.73
5	W10136732		Door Gasket, Magnetic (grey)   (Replaces: 2327161)			Immediately	$ 344.00
5	2159081		Door Gasket, Magnetic (black)   (Replaces: 2309653)				$ 335.58
5	2159073		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309600)				$ 333.19
6	2319727W		Handle (includes No.3) (white)				$ 106.80
6	2319727S		Handle (includes No.3) (stainless/satina)				$ 133.96
6	2319727B		Handle (includes No.3) (black)				$ 109.87
6	2319727T		Handle (includes No.3) (biscuit)		Appelez-nous	-
7	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.76
8	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 8.51
9	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
10	WP489483		Screw   (Replaces: 489420)				$ 10.87
11	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 40.03
11	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
12	W10046700		Nameplate (biscuit)		Appelez-nous	-
12	WPW10243392		Nameplate (black)   (Replaces: W10046640)				$ 70.19
12	WPW10243393		Nameplate (white)   (Replaces: W10046670)				$ 66.65
12	W10046610		Nameplate (grey)				$ 33.40
13	WPW10010150		Set Screw (black)   (Replaces: W10010150)				$ 7.88
13	W11366418		Set Screw (chrome)   (Replaces: W10010140)			Immediately	$ 15.79
14	WP2309941		Trivet   (Replaces: 2309941)			Immediately	$ 76.32
15	WP3400012		Screw   (Replaces: 3400012)				$ 7.82

    View Diagram in Separate Window       Print Part List
