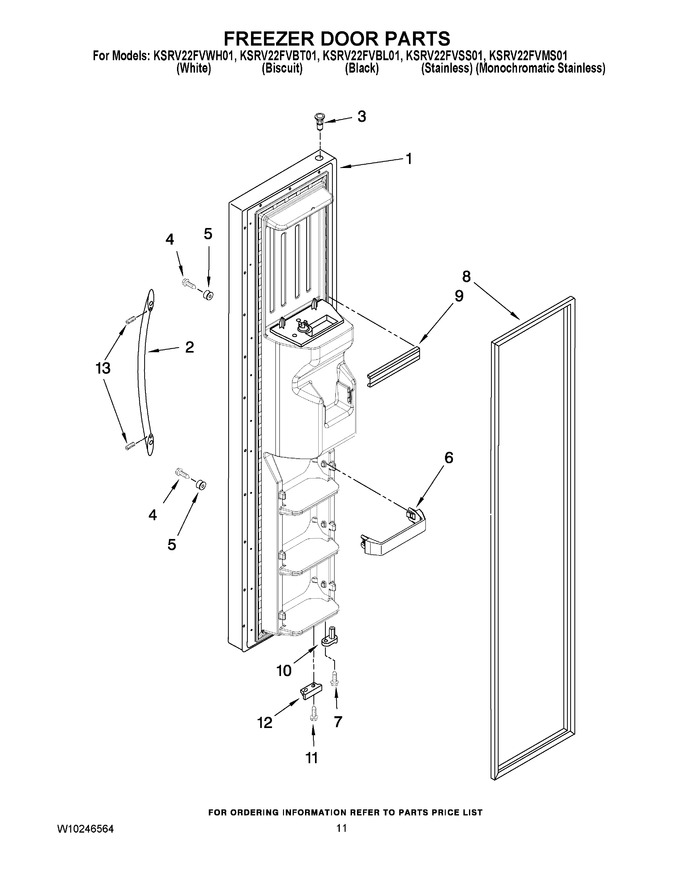

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10214818		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	W10214815		Freezer Door (includes Item 8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	W10214814		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10214817		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless)		Appelez-nous	-
1	W10214816		Freezer Door (includes Item 8 And Dispenser Front Parts) (monochromatic)		Appelez-nous	-
2	2319727W		Handle (includes No.4) (white)				$ 106.80
2	2319727T		Handle (includes No.4) (biscuit)		Appelez-nous	-
2	2319727B		Handle (includes No.4) (black)				$ 109.87
2	2319727S		Handle (includes No.4) (stainless/satina)				$ 133.96
3	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 8.15
4	WP488163		Screw   (Replaces: 488208)				$ 7.92
5	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 8.51
6	WP2156021		Trivet (3)   (Replaces: 2156021)				$ 66.43
7	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
8	W10136733		Door Gasket, Magnetic (grey)   (Replaces: 2327162)				$ 358.98
8	2159080		Door Gasket, Magnetic (black)   (Replaces: 2309654)				$ 325.91
8	2159072		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309604)				$ 323.60
9	WPW10307490		Trim, Door Shelf   (Replaces: 2212375)			Immediately	$ 24.27
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
11	WP489483		Screw   (Replaces: 489420)				$ 11.41
12	2323534B		Bracket, Door Stop (black)		Appelez-nous	-
12	2323534		Bracket, Door Stop (chrome)		Appelez-nous	-
13	WPW10010150		Set Screw (black)   (Replaces: W10010150)				$ 8.57
13	W11366418		Set Screw (chrome)   (Replaces: W10010140)			Immediately	$ 15.79
