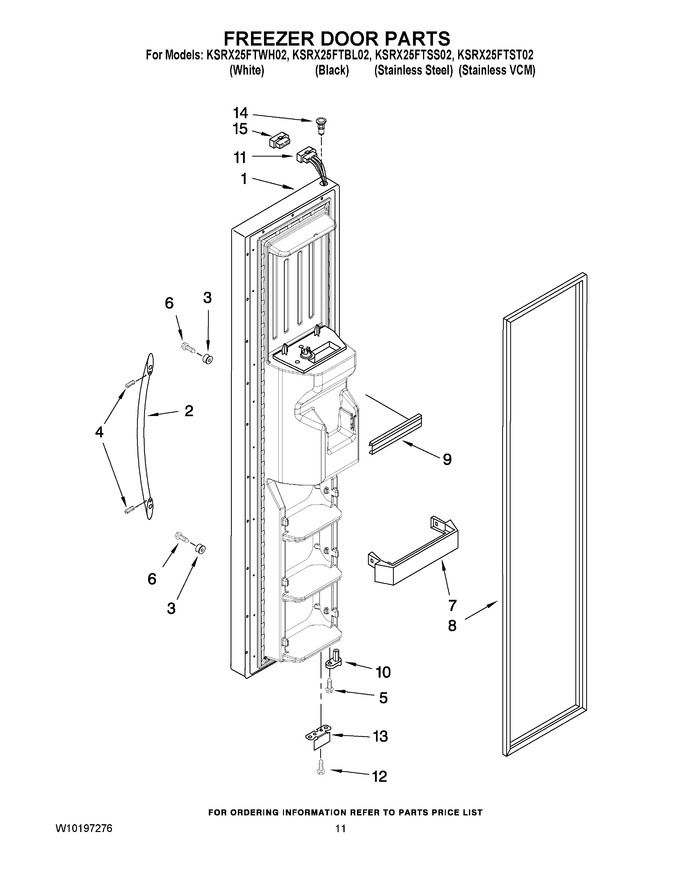

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2327664B | Freezer Door (includes No.8 And Dispenser Front Parts) (black) |
|
- | |||||
| 1 | 2327664LG | Freezer Door (includes No.8 And Dispenser Front Parts) (stainless Vcm) |
|
- | |||||
| 1 | 2327660SB | Freezer Door (includes No.8 And Dispenser Front Parts) (stainless Steel) |
|
- | |||||
| 1 | 2327664W | Freezer Door (includes No.8 And Dispenser Front Parts) (white) |
|
- | |||||
| 2 | 2319727W | Handle (white) |
|
$ 106.80 | |||||
| 2 | 2319727B | Handle (black) |
|
$ 109.87 | |||||
| 2 | 2319727S | Handle (stainless Steel) |
|
$ 133.96 | |||||
| 3 | WPW10170540 | Stud (Replaces: 2219698) |
|
Immediately | $ 8.51 | ||||
| 4 | WPW10010150 | Screw (black) (Replaces: W10010150) |
|
$ 8.57 | |||||
| 4 | W11366418 | Screw (chrome) (Replaces: W10010140) |
|
Immediately | $ 15.79 | ||||
| 5 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 | |||||
| 6 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 7 | 2171070K | Shelf Bin (3) |
|
$ 39.09 | |||||
| 8 | 2159074 | Door Gasket, Magnetic (mist Beige) (Replaces: 2221303) |
|
$ 325.70 | |||||
| 8 | 2159082 | Door Gasket, Magnetic (black) (Replaces: 2221314) |
|
$ 332.49 | |||||
| 9 | WPW10307490 | Trim, Door Shelf (Replaces: 2219982) |
|
Immediately | $ 24.27 | ||||
| 10 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182179) |
|
Immediately | $ 6.39 | ||||
| 11 | WP2154473 | Connector (Replaces: 2154473) |
|
$ 24.83 | |||||
| 12 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 13 | WP2206629B | Bracket, Door Stop (black) (Replaces: 2206629B) |
|
$ 42.79 | |||||
| 13 | WP2206629B | Bracket, Door Stop (chrome) (Replaces: 2206629) |
|
$ 42.79 | |||||
| 14 | WP2182181 | Thimble-top (for White & Black Models For Stainless) (Replaces: 2182181) |
|
$ 8.15 | |||||
| 14 | 2301049 | Thimble-top (for Stainless Steel Model) |
|
$ 75.42 | |||||
| 15 | 2154472 | Connector |
|
- |
