SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)

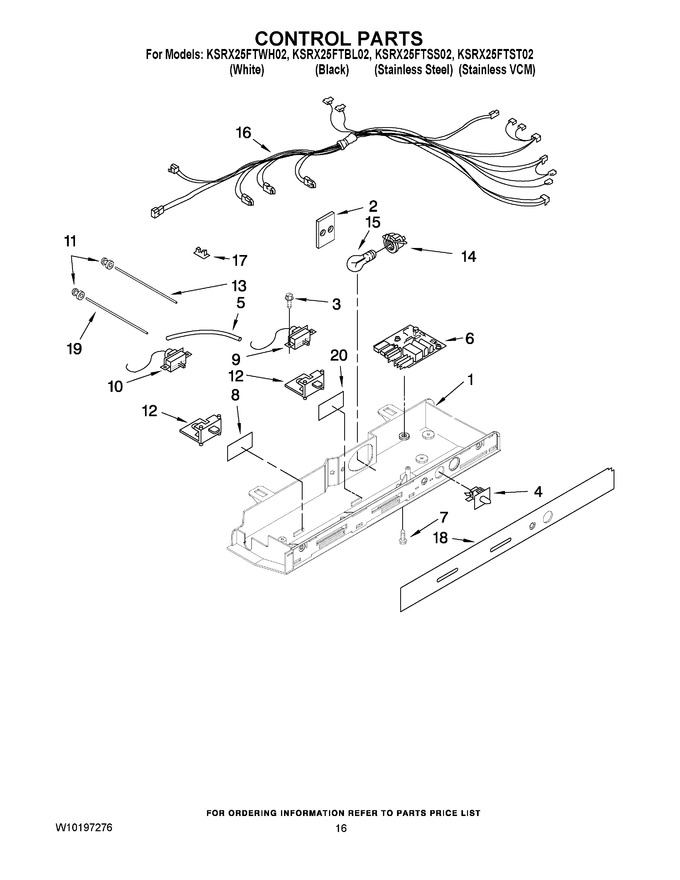

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2200135		Control Box   (Replaces: 2200134)		Appelez-nous	-
2	2172931		Heat Shield				$ 73.90
3	WP3196557		Screw (3)   (Replaces: 3196537)			Immediately	$ 7.95
4	WP2149705		Light Switch   (Replaces: 2149705)			Immediately	$ 40.40
5	WP2196003		Tube Barrier   (Replaces: 2196003)				$ 8.35
6	4388932		Electronic Control   (Replaces: 2303824)			Immediately	$ 280.44
7	489392		Screw (2)   (Replaces: 489398)				$ 14.02
8	2172940		Window		Appelez-nous	-
9	WP2161460		Thermostat   (Replaces: 2161460)			Immediately	$ 261.10
10	WP2182770		Thermostat   (Replaces: 2182770)			Immediately	$ 237.62
11	2172906		Grommet		Appelez-nous	-
12	2161466		Slide, Thermostat				$ 22.28
13	2179920		Light Bar (rc)				$ 37.08
14	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 115.67
15	W11679940		Light Bulb   (Replaces: W10194422)			Immediately	$ 11.30
16	2310117		Control Box Harness		Appelez-nous	-
17	1115375		Clip, Wiring				$ 11.15
18	W10124268		Cover, Control Front		Appelez-nous	-
19	2179921		Light Bar (fc)		Appelez-nous	-
20	2172941		Window		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
