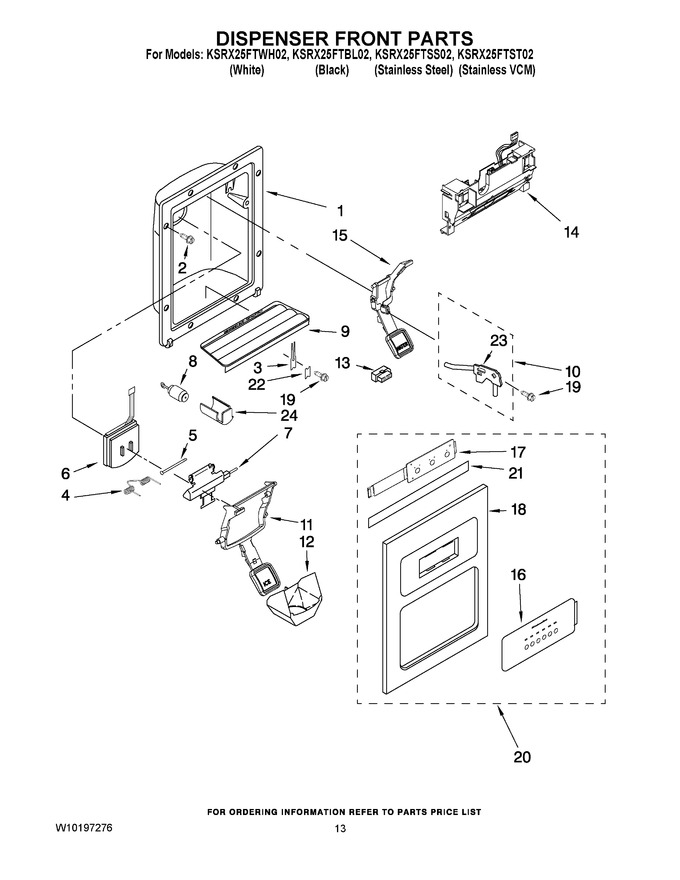

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 3 | WP2194719 | Retainer, Levers (Replaces: 2194719) |
|
Immediately | $ 11.77 | ||||
| 4 | WPW10224328 | Spring, Torsion (Replaces: 2304772) |
|
$ 83.24 | |||||
| 5 | WP2196195 | Pin (Replaces: 2196195) |
|
$ 14.58 | |||||
| 6 | WP2180353 | Door, Ice (Replaces: 2180353) |
|
Immediately | $ 24.69 | ||||
| 7 | 2304355 | Door Mechanism Assembly |
|
- | |||||
| 8 | 2205686 | Delay Mechanism |
|
- | |||||
| 9 | WP2206670W | Grille, Overflow (white) (Replaces: 2206670W) |
|
$ 68.80 | |||||
| 9 | WP2206670B | Grille, Overflow (black) (Replaces: 2206670B) |
|
Immediately | $ 35.52 | ||||
| 10 | 8201537 | Water Fitting Assembly (includes Water Tube) (Replaces: 2304317) |
|
$ 134.13 | |||||
| 11 | 2180261 | Lever, Ice Dispenser (black) |
|
- | |||||
| 11 | 2180259 | Lever, Ice Dispenser (white) |
|
$ 42.12 | |||||
| 12 | WP2180224 | Guide, Ice (Replaces: 2180224) |
|
Immediately | $ 27.63 | ||||
| 13 | 2165271 | Connector |
|
- | |||||
| 14 | W10133702 | Bracket, Control |
|
- | |||||
| 15 | WPW10152859 | Lever, Water Dispenser (black) (Replaces: 2180270) |
|
Immediately | $ 97.92 | ||||
| 15 | WPW10152858 | Lever, Water Dispenser (white) (Replaces: 2180268) |
|
$ 104.60 | |||||
| 19 | WP3400906 | Screw (Replaces: 489000) |
|
$ 7.84 | |||||
| 20 | 2318947W | Front Cover Assembly (includes Items 16, 17, 18 & 21) (white) |
|
$ 331.55 | |||||
| 20 | 2318947B | Front Cover Assembly (includes Items 16, 17, 18 & 21) (black) |
|
$ 123.88 | |||||
| 21 | 2305571 | Gasket |
|
$ 27.44 | |||||
| 22 | WP2195051 | Strain Relief (Replaces: 2195051) |
|
$ 11.67 | |||||
| 23 | WP2304673 | Bracket, Dispener (Replaces: 2304673) |
|
$ 15.60 | |||||
| 24 | 2252127 | Sleeve, Delay Mechanism |
|
$ 22.00 |
