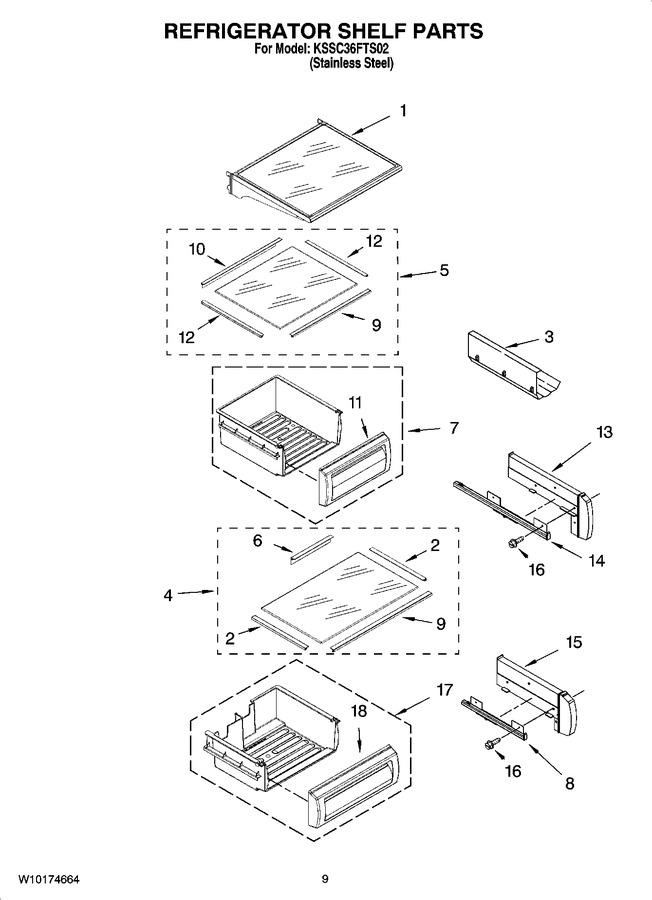

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2222591		Shelf Assembly		Appelez-nous	-
2	2256250		Trim, Glass (side) (meat Pan)		Appelez-nous	-
3	W10777924		Rack, Wine   (Replaces: 2179404)				$ 23.60
4	2302841		Meat Pan Cover Assembly		Appelez-nous	-
5	2302834		Crisper Cover Assembly		Appelez-nous	-
6	2257581		Trim, Glass Rear		Appelez-nous	-
7	W10407623		Crisper Pan (2)   (Replaces: 2252411)		Appelez-nous	-
8	2302955		Slide, Meat Pan (right Side)				$ 326.84
8	2302954		Slide, Meat Pan (left Side)				$ 327.13
10	2256253		Trim, Glass Rear		Appelez-nous	-
11	WP2256247		Front, Crisper Pan   (Replaces: 2256247)				$ 126.88
12	2252255		Trim, Glass Side		Appelez-nous	-
13	2256222		Spacer, Crisper (right Side) (2)				$ 84.99
13	2256223		Spacer, Crisper (left Side) (2)				$ 80.47
14	2302956		Slide, Crisper (left Side) (2)				$ 284.50
14	2302957		Slide, Crisper (right Side) (2)				$ 217.46
15	2256244		Spacer, Meat Pan (right Side)				$ 98.76
15	2256243		Spacer, Meat Pan (left Side)				$ 79.09
16	W11830745		Screw   (Replaces: 8533929)		Appelez-nous	-
17	W10407626		Pan Assembly Meat   (Replaces: 2256368)		Appelez-nous	-
18	WP2256365		Front, Meat Pan   (Replaces: 2256365)				$ 165.25
