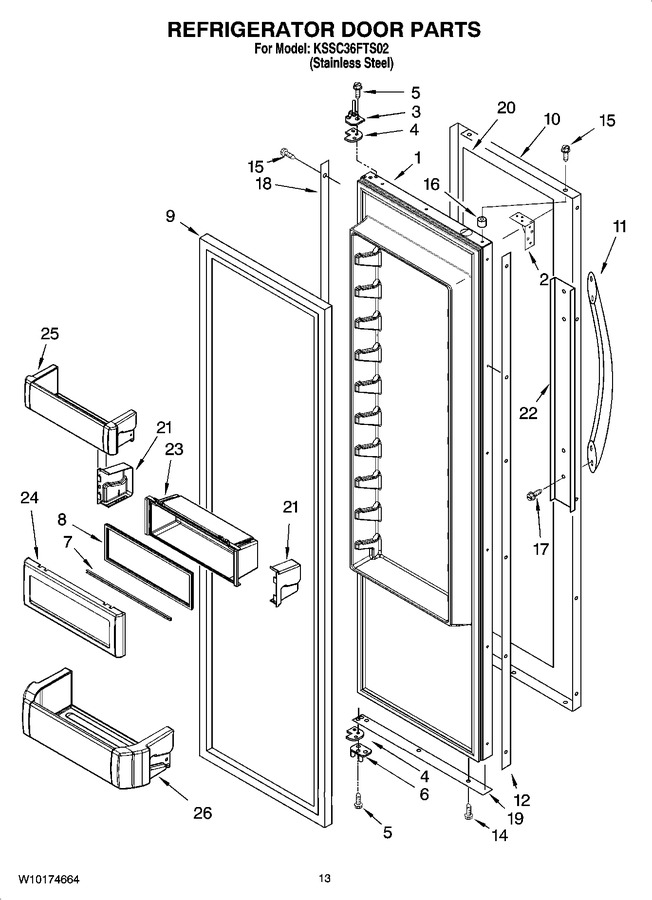

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2252329 | Refrigerator Door Panel (includes Item 9) |
|
- | |||||
| 2 | 2258951 | Brace, Door-corner |
|
$ 33.35 | |||||
| 3 | W11724512 | Hinge Assembly, Top (Replaces: 2266854) |
|
$ 297.62 | |||||
| 4 | W11673500 | Spacer-door, Top & Bottom (Replaces: 2316804) |
|
Immediately | $ 108.07 | ||||
| 5 | W11474472 | Screw (Replaces: 489282) |
|
Immediately | $ 8.02 | ||||
| 6 | 2302878 | Hinge Assembly, Bottom |
|
Immediately | $ 86.68 | ||||
| 7 | 2222795 | Rail, Lid |
|
$ 80.10 | |||||
| 8 | WP2222981 | Gasket, Utility Bin (Replaces: 2222981) |
|
$ 204.19 | |||||
| 9 | WP2266901 | Door Gasket, Magnetic (Replaces: 2222810) |
|
$ 352.23 | |||||
| 10 | 2307752 | Skin, Door |
|
- | |||||
| 11 | WP2316868 | Handle, Door (Replaces: 2316868) |
|
Immediately | $ 268.03 | ||||
| 12 | 2309060 | Spacer, Door (handle Side) |
|
- | |||||
| 14 | W10759522 | Screw (Replaces: 488568) |
|
$ 7.75 | |||||
| 15 | WP8281250 | Screw, 8-15 X .500 Stainless Steel (Replaces: 8281250) |
|
$ 10.88 | |||||
| 16 | 2005433 | Spacer, Door-skin (top) |
|
$ 22.22 | |||||
| 17 | WP308544 | Screw (Replaces: 308544) |
|
Immediately | $ 7.76 | ||||
| 18 | 2005030 | Spacer, Door Hinge Side |
|
- | |||||
| 19 | WP2257333 | Spacer, Door-skin (bottom) (Replaces: 2004933) |
|
$ 134.21 | |||||
| 20 | 2005323 | Filler, Door End Cap |
|
- | |||||
| 21 | WPW10323173 | End Cap (left Side) (Replaces: 2222920) |
|
$ 8.19 | |||||
| 21 | WPW10323172 | End Cap (right Side) (Replaces: 2222919) |
|
$ 8.19 | |||||
| 22 | W10127710 | Plate, Door-handle |
|
Immediately | $ 24.70 | ||||
| 23 | WPW10323035 | Bin, Utility Center (Replaces: 2222921) |
|
$ 80.89 | |||||
| 24 | WPW10131132 | Door, Utility Bin (Replaces: W10131132) |
|
$ 72.20 | |||||
| 25 | W10323598 | Door Shelf (Replaces: 2222772) |
|
$ 99.80 | |||||
| 26 | W10323746 | Shelf, Gallon Door (Replaces: 2222769) |
|
$ 103.09 |
