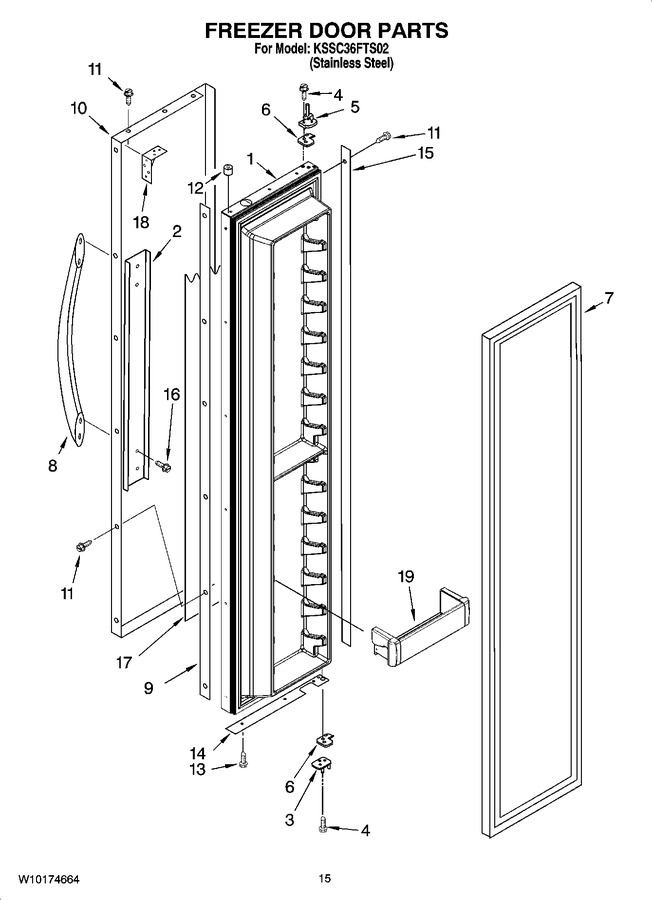

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2252326		Freezer Door Panel (includes Insulation)		Appelez-nous	-
2	W10127710		Plate, Door-handle			Immediately	$ 24.70
3	W11752085		Hinge, Bottom   (Replaces: 2302879)				$ 60.07
4	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.02
5	W11724512		Hinge, Top   (Replaces: 2266854)				$ 297.62
6	W11673500		Spacer-door, Top & Bottom   (Replaces: 2316804)			Immediately	$ 108.07
7	W11624976		Door Gasket, Magnetic   (Replaces: 2222813)			Immediately	$ 301.40
8	WP2316868		Handle, Door   (Replaces: 2316868)			Immediately	$ 268.03
9	2309056		Spacer, Door-skin (handle Side)		Appelez-nous	-
10	2307755		Skin, Door		Appelez-nous	-
11	WP8281250		Screw Stainless Steel   (Replaces: 8281250)				$ 10.88
12	2005433		Spacer, Door-skin (top)				$ 22.22
13	W10759522		Screw   (Replaces: 488568)				$ 7.75
14	2004931		Spacer, Door Skin Bottom		Appelez-nous	-
15	2005030		Spacer, Door-skin (hinge Side)		Appelez-nous	-
16	WP308544		Screw, Handle   (Replaces: 308544)			Immediately	$ 7.76
17	2005324		Filler, Door		Appelez-nous	-
18	2258951		Brace, Door-corner				$ 33.35
19	W10323601		Bin, Door (3)   (Replaces: 2222775)				$ 87.80
