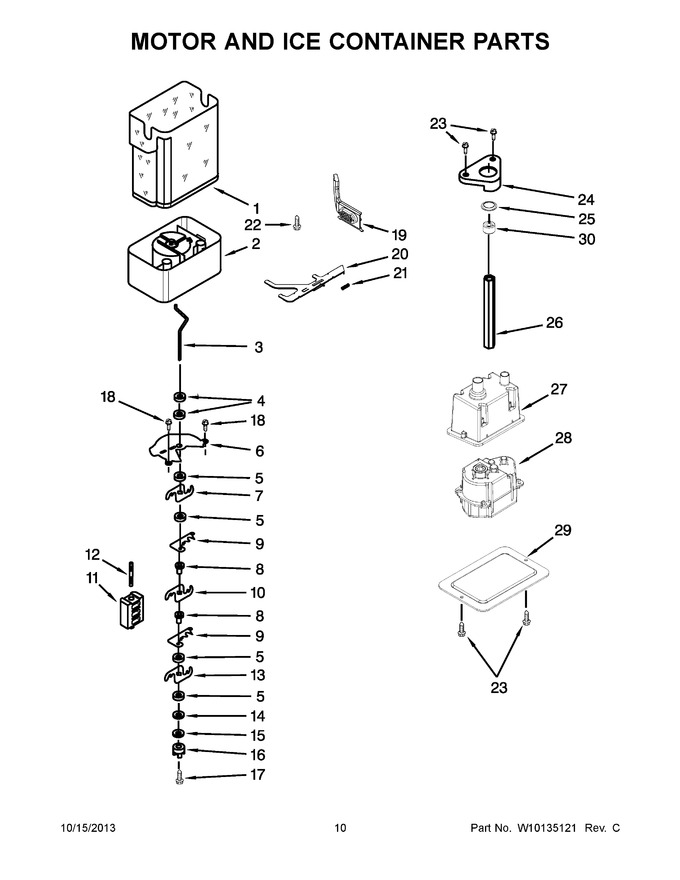

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
WP2222965 |
 |
Bin, Ice (Replaces: 2222965) |
|
|
|
$ 227.45 |
|
|
| 2 |
WPW10134774 |
 |
Bin, Crusher (Replaces: 2222964) |
|
|
|
$ 157.09 |
|
|
| 3 |
2258222 |
|
Auger |
|
Appelez-nous
|
- |
|
|
|
| 4 |
2258220 |
|
Washer, Auger |
|
|
|
$ 8.02 |
|
|
| 5 |
WP1119007 |
 |
Spacer, Flat (Replaces: 1119007) |
|
|
|
$ 14.77 |
|
|
| 6 |
2255460 |
|
Cover, Crusher |
|
|
|
$ 22.88 |
|
|
| 7 |
W10278733 |
 |
Blade, Rotary (Replaces: 2257024) |
|
|
|
$ 91.00 |
|
|
| 8 |
WP1119005 |
 |
Spacer, Step (Replaces: 1119005) |
|
|
|
$ 11.74 |
|
|
| 9 |
2257020 |
 |
Blade, Fixed |
|
|
|
$ 59.91 |
|
|
| 10 |
W10278732 |
 |
Blade, Rotary (Replaces: 2257023) |
|
|
|
$ 91.00 |
|
|
| 11 |
2198602 |
|
Block, Blade |
|
Appelez-nous
|
- |
|
|
|
| 12 |
489229 |
 |
Pin, Roll |
|
|
|
$ 48.47 |
|
|
| 13 |
W10278731 |
 |
Blade, Rotary (Replaces: 2257022) |
|
|
|
$ 90.87 |
|
|
| 14 |
489235 |
|
Washer |
|
|
|
$ 8.05 |
|
|
| 15 |
WP2198661 |
 |
Washer, Top Coupling (Replaces: 2198661) |
|
|
|
$ 11.45 |
|
|
| 16 |
W11629923 |
 |
Coupling, Top (Replaces: 2188918) |
|
|
|
$ 35.31 |
|
|
| 17 |
WP8281164 |
 |
Screw (stainless) (Replaces: 8281164) |
|
|
|
$ 11.33 |
|
|
| 18 |
WP3400065 |
 |
Screw (stainless) (Replaces: 3400065) |
|
|
Immediately |
$ 8.18 |
|
|
| 19 |
WP2252265 |
 |
Button, Bin (Replaces: 2252265) |
|
|
|
$ 46.54 |
|
|
| 20 |
2252207 |
|
Latch, Bin |
|
Appelez-nous
|
- |
|
|
|
| 21 |
WP2198608 |
 |
Spring, Latch Idi Motor (Replaces: 2198608) |
|
|
|
$ 7.55 |
|
|
| 22 |
2198671 |
|
Screw (stainless) |
|
|
|
$ 10.92 |
|
|
| 23 |
WP8281163 |
 |
Screw (stainless) (Replaces: 8281163) |
|
|
Immediately |
$ 10.70 |
|
|
| 24 |
WP2188919 |
 |
Clip, Shaft (Replaces: 2188919) |
|
|
|
$ 7.55 |
|
|
| 25 |
WP2198628 |
 |
Seal (Replaces: 2198628) |
|
|
Immediately |
$ 12.57 |
|
|
| 26 |
W11841865 |
|
Shaft, Drive (Replaces: 2318030) |
|
|
Immediately |
$ 115.26 |
|
|
| 27 |
W11404931 |
 |
Enclosure, Motor (Replaces: 2318011) |
|
|
Immediately |
$ 68.51 |
|
|
| 28 |
2315546 |
|
Motor, Dispenser |
|
Appelez-nous
|
- |
|
|
|
| 29 |
2318028 |
 |
Cover |
|
|
|
$ 107.79 |
|
|
| 30 |
WP2315559 |
 |
Sleeve, Bearing (Replaces: 2315559) |
|
|
|
$ 85.41 |
|
|
