| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
N/P |
|
Housing, Dispenser (not Serviced) |
|
Appelez-nous
|
- |
|
|
|
| 2 |
W11624204 |
|
Screw (Replaces: 486194) |
|
|
|
$ 13.25 |
|
|
| 3 |
WPW10546285 |
 |
Bracket, Motor (Replaces: 2318019) |
|
|
|
$ 105.62 |
|
|
| 4 |
WP2305242 |
 |
Connector, Door Bracket (Replaces: 2305242) |
|
|
Immediately |
$ 91.64 |
|
|
| 5 |
WPW10205979 |
 |
Motor, Ice Door (Replaces: 2318021) |
|
|
Immediately |
$ 96.84 |
|
|
| 6 |
WP2180353 |
 |
Door, Ice (Replaces: 2180353) |
|
|
Immediately |
$ 24.15 |
|
|
| 7 |
WPW10546285 |
|
Support, Ice Door (Replaces: 2318020) |
|
|
|
$ 105.62 |
|
|
| 8 |
WP4449745 |
 |
Screw (Replaces: 4449745) |
|
|
|
$ 7.18 |
|
|
| 9 |
WP2305235 |
 |
Assembly, Spigot (Replaces: 2305235) |
|
|
Immediately |
$ 132.36 |
|
|
| 10 |
2318017 |
|
Assembly, Separator |
|
|
|
$ 112.80 |
|
|
| 11 |
N/P |
|
Housing, Middle (not Available Order Item 12) |
|
Appelez-nous
|
- |
|
|
|
| 12 |
WPW10260622 |
 |
Assembly, Middle Housing (universal Silver) (Replaces: 2307675US) |
|
|
Immediately |
$ 442.05 |
|
|
| 13 |
W10133603 |
 |
Assembly, Water Paddle (universal Silver) (Replaces: 2305307GN) |
|
|
Immediately |
$ 305.28 |
|
|
| 14 |
W10133603 |
|
Assembly, Ice Paddle (universal Silver) (Replaces: 2305306GN) |
|
|
Immediately |
$ 305.28 |
|
|
| 15 |
2305219 |
|
Cover, Control |
|
|
|
$ 83.69 |
|
|
| 16 |
WP2321746 |
 |
Control, User Interface (includes Item 15) (Replaces: 2304140) |
|
|
Immediately |
$ 286.96 |
|
|
| 17 |
WPW10151236 |
 |
Assembly, User Interface (Replaces: 2318073) |
|
|
|
$ 466.67 |
|
|
| 18 |
W11177738 |
 |
Tray, Drip (universal Silver) (Replaces: 2318062US) |
|
|
Immediately |
$ 69.56 |
|
|
| 19 |
W10222215 |
|
Assembly, Led (Replaces: 2305342) |
|
|
|
$ 139.09 |
|
|

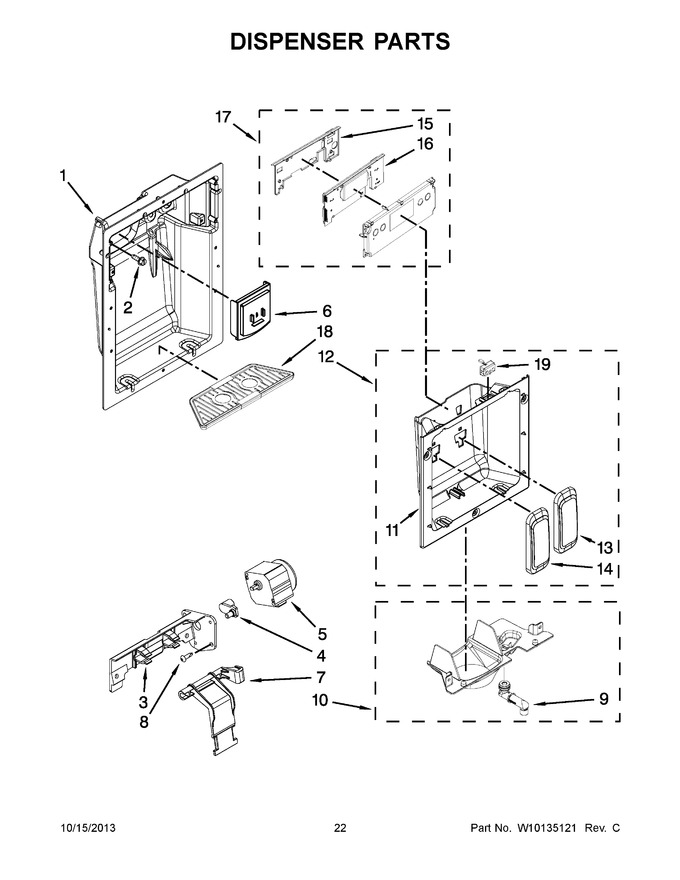

View Diagram in Separate Window
