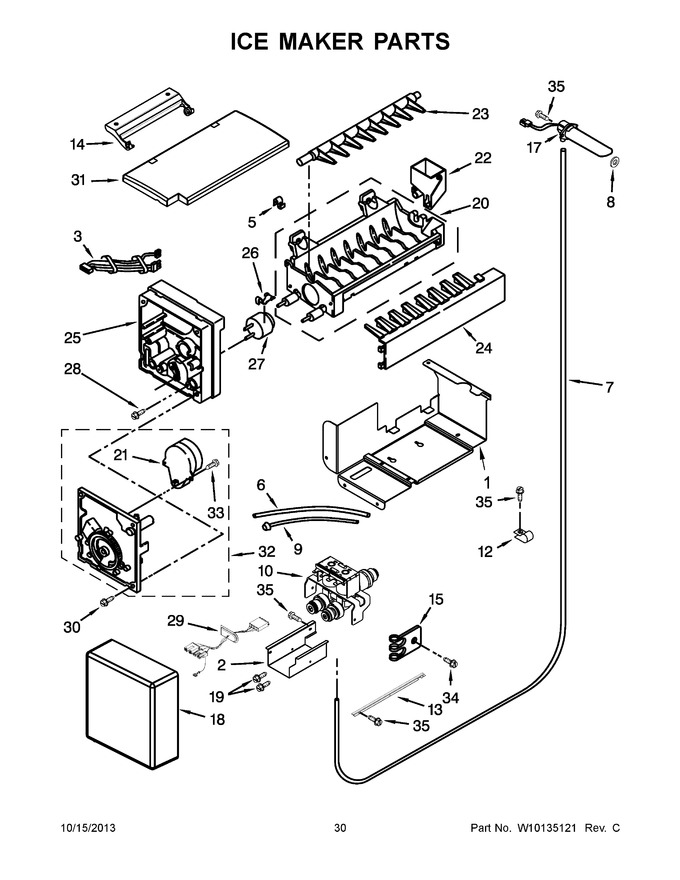

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
2300167 |
|
Bracket, Icemaker Mounting |
|
Appelez-nous
|
- |
|
|
|
| 2 |
2320599 |
|
Shield, Valve |
|
Appelez-nous
|
- |
|
|
|
| 3 |
2310192 |
|
Assembly, Icemaker Wire |
|
Appelez-nous
|
- |
|
|
|
| 5 |
WP628379 |
 |
Clip, Thermal Fuse (Replaces: 628379) |
|
|
|
$ 9.99 |
|
|
| 6 |
2325170 |
|
Tube, Filter Inlet |
|
|
|
$ 34.91 |
|
|
| 7 |
2320658 |
|
Tube, Water |
|
|
|
$ 71.00 |
|
|
| 8 |
2302758 |
|
Gasket |
|
Appelez-nous
|
- |
|
|
|
| 9 |
W11533506 |
 |
Tube, Filter Outlet (Replaces: 2317912) |
|
|
|
$ 29.84 |
|
|
| 10 |
WPW10159843 |
|
Valve, Solenoid (Replaces: 2307744) |
|
|
Immediately |
$ 303.00 |
|
|
| 12 |
W10833902 |
|
Clamp, Tube (Replaces: 2221070) |
|
|
|
$ 10.39 |
|
|
| 13 |
2320559 |
|
Support, Valve |
|
|
|
$ 79.91 |
|
|
| 14 |
WP2198641 |
 |
Bracket, Icemaker Cover (Replaces: 2198641) |
|
|
|
$ 6.80 |
|
|
| 15 |
WP488366 |
 |
Clip, Tube (Replaces: 2305274) |
|
|
|
$ 10.73 |
|
|
| 17 |
W10460127 |
 |
Tube, Water Inlet (Replaces: 2259417) |
|
|
|
$ 187.43 |
|
|
| 18 |
2257538 |
|
Cover, Icemaker |
|
Appelez-nous
|
- |
|
|
|
| 19 |
WP489128 |
 |
Screw (Replaces: 488500) |
|
|
|
$ 10.26 |
|
|
| 20 |
WPW10122550 |
 |
Assembly, Mold And Heater (Replaces: 2212351) |
|
|
|
$ 195.88 |
|
|
| 21 |
N/P |
|
Motor, (not Serviceable Order Item 32) |
|
Appelez-nous
|
- |
|
|
|
| 22 |
WP628356 |
 |
Cup, Water Fill (Replaces: 628356) |
|
|
|
$ 48.38 |
|
|
| 23 |
626753 |
 |
Ejector (Replaces: 2212320) |
|
|
|
$ 13.18 |
|
|
| 24 |
W10297245 |
 |
Ice Striper (Replaces: 2212318) |
|
|
|
$ 68.97 |
|
|
| 25 |
WP2195914 |
 |
Housing, Support (Replaces: 2194712) |
|
|
|
$ 98.82 |
|
|
| 26 |
WP2315522 |
 |
Retainer Thermostat (Replaces: 2315522) |
|
|
|
$ 10.44 |
|
|
| 27 |
WP627985 |
 |
Thermostat (Replaces: 627985) |
|
|
|
$ 103.18 |
|
|
| 28 |
8533917 |
|
Screw |
|
|
|
$ 12.64 |
|
|
| 29 |
W10279391 |
|
Assembly, Smart Valve Wire (Replaces: 2310298) |
|
|
|
$ 120.77 |
|
|
| 30 |
WP681249 |
 |
Screw (Replaces: 489276) |
|
|
Immediately |
$ 7.43 |
|
|
| 31 |
W10504752 |
|
Cover, Icemaker (Replaces: 2317039) |
|
|
|
$ 81.70 |
|
|
| 32 |
W10190935 |
 |
Assembly, Module And Motor (Replaces: 626680) |
|
|
Immediately |
$ 122.65 |
|
|
| 33 |
489136 |
|
Screw |
|
|
|
$ 9.72 |
|
|
| 34 |
WP489464 |
 |
Screw (Replaces: 489464) |
|
|
Immediately |
$ 7.54 |
|
|
| 35 |
W11624204 |
|
Screw (Replaces: 486194) |
|
|
|
$ 13.25 |
|
|
| 100 |
WPW10277449 |
 |
Assembly, Complete Icemaker (Replaces: 2320637) |
|
|
|
$ 248.57 |
|
|
| NI |
N/P |
|
Following Parts Not .illustrated |
|
Appelez-nous
|
- |
|
|
|
| NI |
8537055 |
|
Cleaner, Stainless Steel (2 Oz) |
|
Appelez-nous
|
- |
|
|
|
| NI |
W10127746 |
|
Assembly, Ice Container |
|
Appelez-nous
|
- |
|
|
|
| NI |
W10129081 |
 |
Handle Kit For Previous Architect Series (stainless) |
|
|
|
$ 229.27 |
|
|
