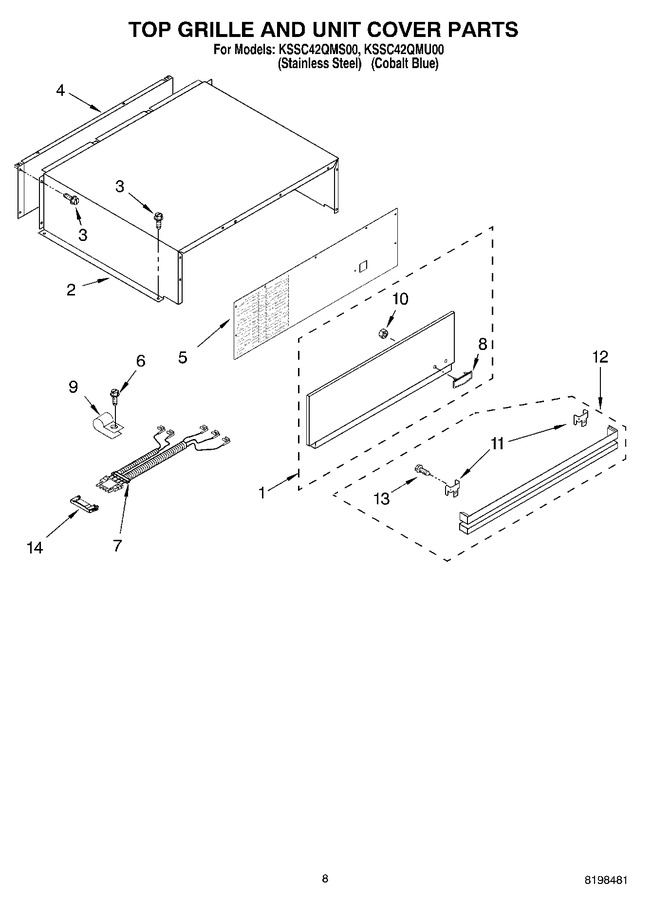

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2257411S		Panel, Decorative Assembly (stainless Steel)		Appelez-nous	-
1	2257411U		Panel, Decorative Assembly (cobalt Blue)		Appelez-nous	-
2	2259320		Cover, Unit		Appelez-nous	-
3	W11624204		Screw   (Replaces: 486194)				$ 14.72
4	2256466		Back Panel				$ 327.22
5	2259095		Cover-unit, Front		Appelez-nous	-
6	WP965173		Screw   (Replaces: 487415)			Immediately	$ 11.87
7	2187429		Wire Assembly Rc/fc Light Switch		Appelez-nous	-
8	2005292		Badge, Kitchen Aid				$ 52.20
9	489348		Clamp		Appelez-nous	-
10	WP2004333		Nut   (Replaces: 2004333)				$ 11.24
11	2254759		Bracket, Louver		Appelez-nous	-
12	2254761S		Louver, Grille (stainless Steel)		Appelez-nous	-
13	303776		Screw   (Replaces: 488879)		Appelez-nous	-
14	2221297		Connector, Enclosure		Appelez-nous	-
