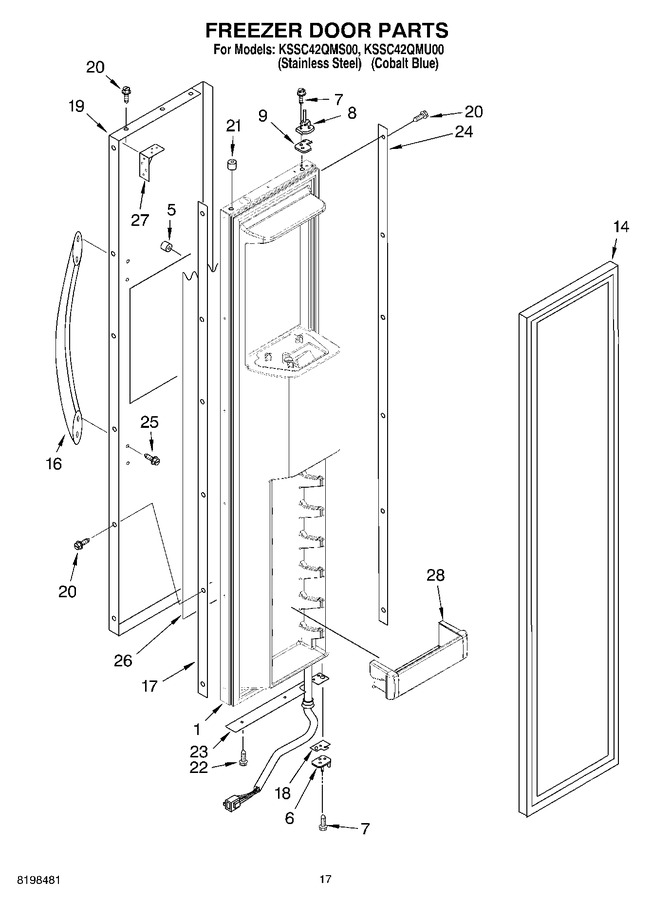

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2252324B		Freezer Door Panel (includes Item 14) (black)		Appelez-nous	-
1	2252324U		Freezer Door Panel (includes Item 14) (cobalt Blue)		Appelez-nous	-
5	2252354		Spacer		Appelez-nous	-
6	W11752085		Hinge, Bottom   (Replaces: 2256390)				$ 63.07
7	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
8	W11724512		Hinge, Top   (Replaces: 2266854)				$ 312.50
9	2256381		Spacer-door, Top				$ 24.49
14	WP2266905		Door Gasket, Magnetic   (Replaces: 2222814)				$ 329.66
16	2005290		Handle, Door (stainless Steel)				$ 130.36
17	2300028		Spacer, Door-skin (handle Side)		Appelez-nous	-
18	2257637		Door, Spacer				$ 15.45
19	2222910		Skin, Door (stainless Steel)		Appelez-nous	-
19	2222910U		Skin, Door (cobalt Blue)		Appelez-nous	-
20	WP8281250		Screw Stainless Steel   (Replaces: 8281250)				$ 11.42
21	2005433		Spacer, Door-skin (top)				$ 23.33
22	W10759522		Screw   (Replaces: 488568)				$ 8.24
23	2257385		Spacer, Door-skin (bottom)		Appelez-nous	-
24	2005030		Spacer, Door-skin (hinge Side)		Appelez-nous	-
25	WP308544		Screw, Handle   (Replaces: 308544)			Immediately	$ 8.30
26	2252391		Filler, Door		Appelez-nous	-
27	2258951		Brace, Door-corner				$ 33.35
28	W10323602		Bin, Shelf   (Replaces: 2222776)				$ 98.03

    View Diagram in Separate Window       Print Part List
