SELECT A DIAGRAM

Diagram for 01 - Cabinet Parts
01 - Cabinet Parts

Diagram for 02 - Cabinet Trim Parts
02 - Cabinet Trim Parts

Diagram for 03 - Freezer Shelf Parts
03 - Freezer Shelf Parts

Diagram for 04 - Refrigerator Liner Parts
04 - Refrigerator Liner Parts

Diagram for 05 - Control Panel Parts
05 - Control Panel Parts

Diagram for 06 - Top Grille And Unit Cover Parts
06 - Top Grille And Unit Cover Parts

Diagram for 07 - Refrigerator Shelf Parts
07 - Refrigerator Shelf Parts

Diagram for 08 - Freezer Liner And Air Flow Parts
08 - Freezer Liner And Air Flow Parts

Diagram for 09 - Motor And Ice Container Parts
09 - Motor And Ice Container Parts

Diagram for 10 - Refrigerator Door Parts
10 - Refrigerator Door Parts

Diagram for 11 - Freezer Door Parts
11 - Freezer Door Parts

Diagram for 12 - Dispenser And Front Parts
12 - Dispenser And Front Parts

Diagram for 13 - Upper Unit Parts
13 - Upper Unit Parts

Diagram for 14 - Lower Unit And Tube Parts
14 - Lower Unit And Tube Parts

Diagram for 15 - Icemaker Parts
15 - Icemaker Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2252330 Refrigerator Door Panel (includes Item 9) Appelez-nous -
2 2258951 Brace, Door-corner Special Order $ 33.35

3 W11724512 Hinge Assembly, Top   (Replaces: 2266854) Special Order $ 312.50

4 2256381 Spacer-door, Top Special Order $ 24.49

5 W11474472 Screw   (Replaces: 489282) In-Stock Immediately $ 8.63

6 2302878 Hinge Assembly, Bottom   (Replaces: 2256389) In-Stock Immediately $ 91.01

7 W11448696 Rail, Lid   (Replaces: 2222796) Special Order $ 153.99

8 W11448696 Gaasket, Utility Bin   (Replaces: 2222982) Special Order $ 153.99

9 WP2266902 Door Gasket, Magnetic   (Replaces: 2222811) Special Order $ 330.30

10 2006772U Skin, Door (cobalt Blue) Appelez-nous -
10 2006772 Skin, Door (stainless Steel) Appelez-nous -
11 2005290 Handle, Door (stainless Steel) Special Order $ 130.36

12 2300028 Spacer, Door-skin (handle Side) Appelez-nous -
13 2257637 Door Spacer, Bottom Special Order $ 15.45

14 W10759522 Screw   (Replaces: 488568) Special Order $ 8.24

15 WP8281250 Screw, 8-15 X .500 Stainless Steel   (Replaces: 8281250) Special Order $ 11.42

16 2005433 Spacer, Door-skin (top) Special Order $ 23.33

17 WP308544 Screw, Handle   (Replaces: 308544) In-Stock Immediately $ 8.30

18 2005030 Spacer, Door-skin (hinge Side) Appelez-nous -
19 2004934 Spacer, Door-skin (bottom) Appelez-nous -
20 2005326 Filler, Door Appelez-nous -
21 WPW10323173 End Cap (left Side)   (Replaces: 2222920) Special Order $ 8.60

21 WPW10323172 End Cap (right Side)   (Replaces: 2222919) Special Order $ 8.60

25 W10323042 Bin, Utility (center)   (Replaces: 2222922) Special Order $ 223.93

26 W11448696 Door, Utility Bin   (Replaces: 2222925) Special Order $ 153.99

27 W10323599 Door Shelf   (Replaces: 2222773) Special Order $ 146.61

28 2165792 Butter Tray Appelez-nous -
30 W10323747 Shelf, Gallon Door   (Replaces: 2222770) Special Order $ 145.36


    View Diagram in Separate Window     Print Icon   Print Part List

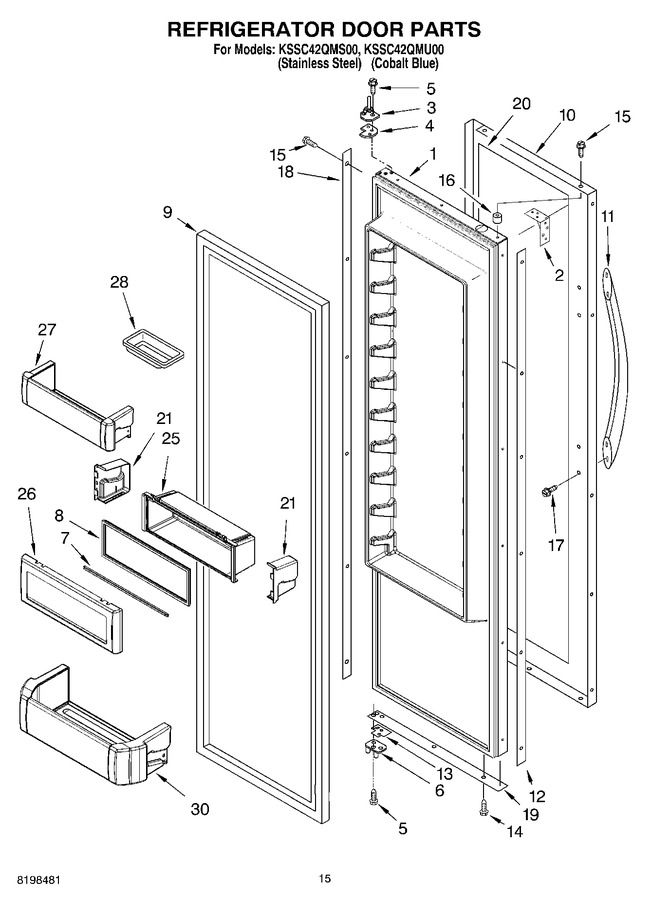

Diagram for KSSC42QMU00
